Description and Technical Data:
1) Overview/Key Features

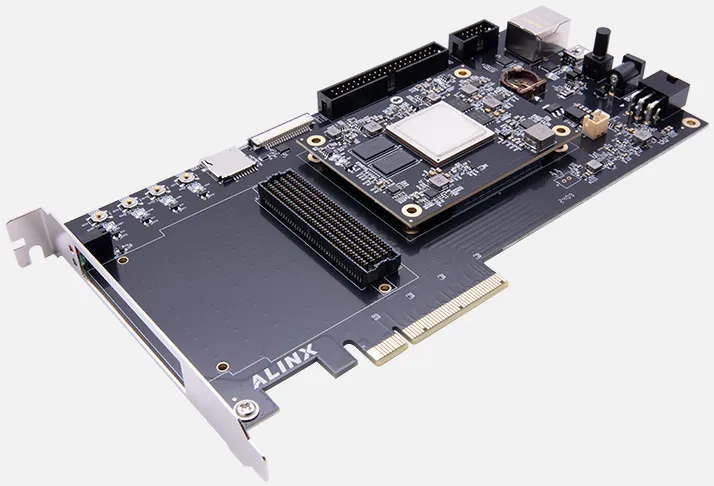

The AXKU5 FPGA development board is a high-performance evaluation and prototyping platform based on the AMD Kintex UltraScale+ XCKU5P FPGA. It combines an ACKU5 system-on-module with a base board and provides DDR4 memory, QSPI Flash, PCIe, FMC expansion, Gigabit Ethernet, MIPI, MicroSD, and general-purpose expansion interfaces.
- Kintex UltraScale+ XCKU5P-2FFVB676I FPGA.
- 16 nm FinFET FPGA fabric.
- Up to 60% lower power consumption compared with 7 Series FPGA devices.
- More than 2x faster system-level performance per watt compared with Kintex-7 FPGA devices.
- Pluggable module with 2 x Samtec board-to-board connectors.
- 2 GB 32-bit DDR4 SDRAM.
- 2 x 32 MB QSPI Flash devices.
- 1 x FMC HPC interface with 34 LVDS pairs and 8 GTY pairs.
- 1 x PCIe Gen3 x8 interface.
- 1 x Gigabit Ethernet interface.
- 1 x USB-to-UART interface.
- 1 x 4-lane MIPI interface.
- 1 x MicroSD card interface.
- 1 x 40-pin expansion port with 34 FPGA I/O connections.
- Compatible with expansion modules including binocular cameras, TFT LCD screens, and high-speed analog-to-digital modules.
- Power, UART-status, and user LED indicators.
- 4 x user keys.
- 12 V single-supply input.
- 215 x 111 mm board form factor.
- Suitable for data-center acceleration, network acceleration, storage acceleration, industrial, scientific, medical imaging, machine vision, wired communications, optical transport, radio, and baseband applications.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| FPGA device | XCKU5P-2FFVB676I |
| FPGA family | Kintex UltraScale+ |
| FPGA package | FFVB676 |
| FPGA speed grade | -2 |
| FPGA process technology | 16 nm FinFET |
| System-on-module connectors | 2 x Samtec board-to-board connectors |
| DDR4 SDRAM | 2 GB, 32-bit |
| QSPI Flash | 2 x 32 MB; 64 MB total |
| FMC interface | 1 x FMC HPC |
| FMC HPC I/O | 34 LVDS pairs |
| GTY transceivers | 8 pairs through the FMC HPC interface |
| PCI Express | 1 x PCIe Gen3 x8 |
| Ethernet | 1 x Gigabit Ethernet |
| UART | 1 x USB-to-UART interface |
| MIPI | 1 x 4-lane MIPI interface |
| Removable storage | 1 x MicroSD card interface |
| Expansion port | 1 x 40-pin port with 34 FPGA I/O connections |
| Expansion-port pitch | 2.54 mm |
| LED indicators | 1 x power LED, 1 x RXD LED, 1 x TXD LED, and 4 x user LEDs |
| Push buttons | 4 x user keys |
| Power input | 12 V single supply |
| Board dimensions | 215 x 111 mm |
| Cooling | FAN8060 low-profile heatsink kit, preinstalled |
3) Tech Support/Dokuments
Web available technical information usually covers the AXKU5 product overview, system-on-module and base-board features, applications, technical specifications, product selection information, documentation, related products, and package contents.
There are the following technical resources:
- AXKU5 V1.0 User Manual.
- Technical information concerning DDR4 SDRAM, QSPI Flash, PCIe, FMC HPC, Gigabit Ethernet, USB-to-UART, MIPI, MicroSD, expansion I/O, LEDs, push buttons, power, and board dimensions.
- Information concerning compatible FMC cards and expansion modules.
- Development demos and tutorials.
- Design-in information for Kintex UltraScale+-based applications.
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
Available add-on and related products mentioned for the AXKU5 include:
- AXKU3 FPGA Dev Board & Kit with AMD Kintex UltraScale+ XCKU3P.
- AXKU15 FPGA Dev Board & Kit with AMD Kintex UltraScale+ XCKU15P.
- AXKU062 FPGA Dev Board & Kit with AMD Kintex UltraScale XCKU060.
- AXKU042 FPGA Dev Board & Kit with AMD Kintex UltraScale XCKU040.
- AXKU040 FPGA Dev Board & Kit with AMD Kintex UltraScale XCKU040.
- AXU5EVB-P Dev Board & Kit with AMD Zynq UltraScale+ MPSoC ZU5EV.
- AXU5EVB-E Dev Board & Kit with AMD Zynq UltraScale+ MPSoC ZU5EV.
- FH9000 16bit/14bit RF-ADC AD9009 FMC HPC Card.
- FH7000 16bit/14bit ADC AD9371 Communication RF FMC HPC Card.
- FH7621 8K HDMI2.1 Video Input/Output Interface HPC FMC Card.
- FH9712 16-channel GMSL Autopilot Camera Acquisition HPC FMC Card.
- FL9781 14-bit 500MSPS AD9781 Output Module LPC FMC Card.
- FL9031 4-channel Gigabit Ethernet LPC FMC Card.
- FL2971 3G-SDI 1080P Video Input/Output LPC FMC Card.
- FL9627 4-channel 12bit 125M LVDS AD9627 LPC FMC Card.
- FL2514 14bit 250MSPS AD Input Analog-to-Digital LPC FMC Card.
- FL9613 4-channel 12bit 250M AD9613 Acquisition LPC FMC Card.
- FL6000 12Bit ADC AD9361 Communication RF FMC LPC Card.
5) Downloads/Links
- Download — AXKU5 V1.0 User Manual
6) What is in the package
The package contains.
- 1 x System-on-module.
- 1 x Base board.
- 1 x Mini USB cable.
- 1 x USB downloader cable / set.
- 1 x 12 V power adapter.
- 1 x PCIe fence.
- 1 x Heatsink kit, preinstalled.
