Description and Technical Data:
1) Overview/Key Features

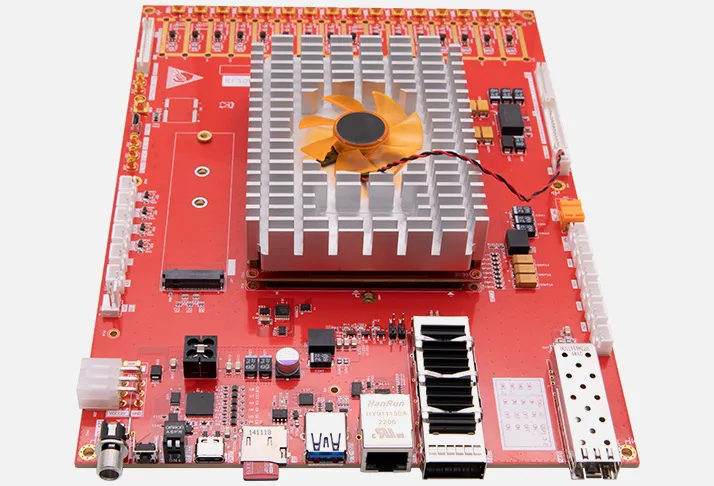

The ALINX AXRF47 is a high-performance RF development board and kit based on the AMD Zynq™ UltraScale+™ RFSoC XCZU47DR. It integrates RF direct-sampling data converters, FPGA programmable logic, ARM processing, high-speed transceivers, DDR4 memory, and multiple expansion interfaces for demanding RF and embedded-processing applications.
- AMD Zynq UltraScale+ RFSoC XCZU47DR device
- 8-channel 14-bit RF ADCs with sampling rates up to 5 GSPS
- 8-channel 14-bit RF DACs with sampling rates up to 9.85 GSPS
- RF input and output operation supporting frequency bands below 6 GHz
- Quad-core ARM Cortex-A53 processor operating up to 1.333 GHz
- Dual-core ARM Cortex-R5F real-time processor operating up to 533 MHz
- 8 × PL GTY transceivers supporting data rates up to 28.21 Gbps
- 4 × PS-GTR transceivers supporting data rates up to 6 Gbps
- DDR4 memory for both the processing system and programmable logic
- Gigabit Ethernet, QSFP28, SFP, M.2, QSPI Flash, and board expansion interfaces
- Suitable for large-scale MIMO, 5G baseband, phased-array radar, software-defined radio, spectrum monitoring, satellite communications, medical systems, and test and measurement
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product type | RF development board and kit |
| RFSoC device | XCZU47DR, Zynq UltraScale+ RFSoC |
| Application processor | Quad-core ARM Cortex-A53, up to 1.333 GHz |
| Real-time processor | Dual-core ARM Cortex-R5F, up to 533 MHz |
| FPGA technology | 16 nm FinFET+ programmable logic fabric |
| RF ADC | 8 channels, 14-bit resolution, up to 5 GSPS |
| RF DAC | 8 channels, 14-bit resolution, up to 9.85 GSPS |
| RF frequency range | RF input and output frequency response below 6 GHz |
| PS DDR4 SDRAM | 4 GB, 64-bit bus |
| PL DDR4 SDRAM | 2 GB, 32-bit bus |
| QSPI Flash | 128 MB |
| PL GTY transceivers | 8 channels, up to 28.21 Gbps |
| PS-GTR transceivers | 4 channels, up to 6 Gbps |
| Ethernet | Gigabit Ethernet interface |
| Optical interface | QSFP28 and SFP interfaces |
| Expansion interface | M.2 interface and high-speed board expansion connections |
| Operating temperature | -40°C to +85°C |
| Power input | 5 V single-supply input |
| Board dimensions | 115 mm × 85 mm module form factor |
The AXRF47 combines direct RF sampling, heterogeneous ARM and FPGA processing, DDR4 memory, and high-speed serial connectivity on a compact development platform.
3) Tech Support/Dokuments
Web available technical information usually covers the AXRF47 board architecture, the XCZU47DR RFSoC device, RF ADC and DAC channels, sampling rates, RF frequency coverage, ARM processors, FPGA fabric, DDR4 memory, transceivers, optical interfaces, storage, operating temperature, and power requirements.
There are the following types of technical resources associated with this platform:
- Product specifications
- Hardware user documentation
- Board interface and connector information
- RFSoC device and RF data-converter documentation
- FPGA and embedded-processor development information
- RF acquisition and signal-generation examples
- Application information for 5G, MIMO, radar, software-defined radio, spectrum monitoring, and instrumentation
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- AXRF49 RF development board and kit based on the AMD Zynq UltraScale+ RFSoC XCZU49DR
- AXRF67 RF development board based on the AMD Zynq UltraScale+ RFSoC family
- ACRF47 Zynq UltraScale+ RFSoC system-on-module
- ACRF49 Zynq UltraScale+ RFSoC system-on-module
5) Downloads/Links
6) What is in the package
The package contains.
- 1 x AXRF47 RF development board and kit
