Description and Technical Data:

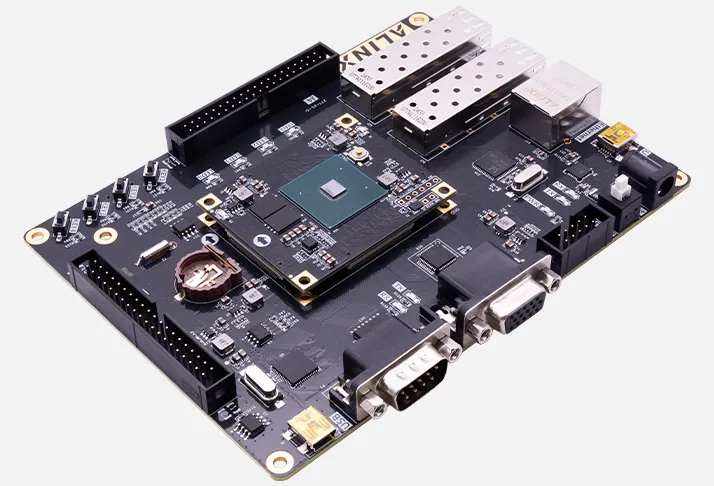

The AXSU35 FPGA development board equipped with the AMD Spartan™ UltraScale+™ series device, delivers standout performance with DDR4 SDRAM, QSPI Flash, PCIe, FMC HPC, Gigabit Ethernet.
Product Description
AXSU35 Development Board AMD Spartan UltraScale+ FPGA, core + base board. HYPERRAM, QSPI Flash, 246 I/Os. Interfaces: GbE, USB 2.0, VGA, SD slot, 40-pin headers. Industrial grade. Ideal for prototyping.
Applications
Industrial
● Factory Automation
● Robotics
● IIoT Gateways and Edge Applications
● Smart Cities and Smart Grids
Medical
● Intelligent Patient Monitors
● Robot-assisted Surgery
Wired/Wireless
● 4G and 5G Wireless Infrastructure
● Board Controllers
● Network Access and Connectivity
Data Center
● Board Management Controllers
● Hyperscale Storage
Key Features
System-on-Module
● AMD Spartan™ UltraScale+™:
◆ 16nm FinFET FPGA fabric
● Pluggable module with 4 x Samtec board-to-board connectors
● 64Mbit HYPERRAM
● 128Mbit QSPI FlashBase Board
● 1 x Gigabit Ethernet
● 2 x SFP+ (no transceivers, unavailable)
● 1 x VGA out
● 1 x USB2.0
● 1 x Micro SD
● 1 x UART (USB to UART)
● 1 x RS232
● 1 x 512 Byte EEPROM 24LC04
● 1 x RTC DS1302 (Real-time Clock)
● 2 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
● LED (1 x PWR + 1 x RXD + 1 x TXD + 4 X LED) KEY (4 x KEY)
● 12V single supply
● Dimensions: 150 x 110 mm form factor
Board Features
Featuring the AMD Spartan UltraScale+ XCSU35P-2SBVB625I
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX FPGA development board help shorten time-to-market for any AMD Spartan UltraScale+ based application.
* The AXSU35 development board consists of a ACSU35 SoM and base board. If you want to purchase ACSU35 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box
ALINX AMD Spartan UltraScale+ XCSU35P FPGA development board and Some accessories
| System-on-Module | 1 | Base Board | 1 |
|---|---|---|---|
| Mini USB Cable | 1 | USB Downloader Cable / set | 1 |
| 12V Power Adapter | 1 | Acrylic board | 1 |
| Heatsink | 1 |
Product Matrix
| Product Model | Preferred Model | FPGA Devices | HYPERRAM | QSPI Flash | USD Price | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AXSU35 | √ | XCSU35P-2SBVB625I | 64Mbit | 128Mbit | 359 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
More Details:
FPGA Dev Boards
