Description and Technical Data:
1) Overview/Key Features

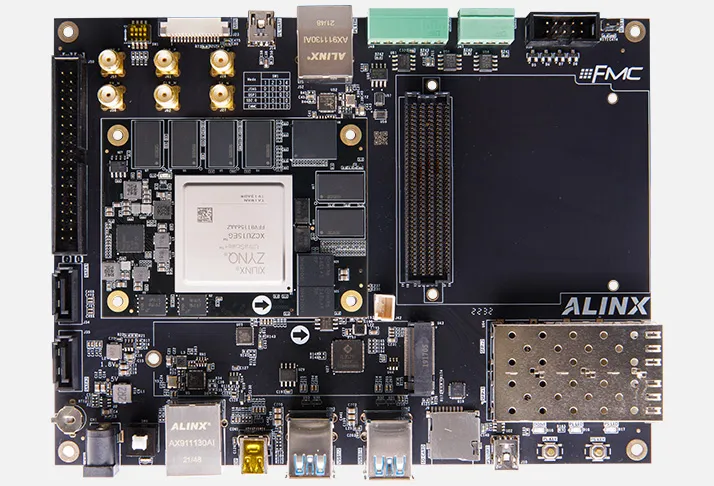

The AXU15EGB is a high-performance development board based on the AMD Zynq™ UltraScale+™ MPSoC XCZU15EG-2FFVB1156I. It combines the ACU15EG system-on-module with a feature-rich carrier board, providing processing-system and programmable-logic DDR4 memory, eMMC and QSPI storage, FMC HPC expansion, SFP+ connectivity, PCIe, M.2, DisplayPort, USB, CAN, RS485, and MIPI interfaces. The board is suitable for artificial intelligence, deep learning, automotive systems, industrial control, machine vision, video processing, data centers, communications, and embedded computing. alinx.com
Key features include:
- Quad-core ARM® Cortex™-A53 processor operating at up to 1.3 GHz
- Dual-core ARM® Cortex™-R5F real-time processor operating at up to 533 MHz
- Mali-400 MP2 GPU
- 16 nm FinFET+ programmable-logic fabric
- 4 GB 64-bit DDR4 SDRAM connected to the processing system
- 2 GB 32-bit DDR4 SDRAM connected to the programmable logic
- 64 MB QSPI Flash
- 32 GB eMMC Flash
- 1 × FMC HPC connector with 36 LVDS I/O pairs and 8 GTH transceiver pairs
- 2 × SFP+ interfaces supporting up to 12.5 Gbps per line
- 2 × Gigabit Ethernet interfaces
- 1 × PCIe interface
- 1 × PS-connected M.2 interface
- 1 × PS-connected DisplayPort interface
- 1 × 2-lane MIPI interface connected to the programmable logic
- 2 × CAN interfaces
- 2 × RS485 interfaces
- 2 × USB 3.0 and 2 × USB 2.0 interfaces
- 1 × 40-pin expansion port with 34 I/O signals
- Micro SD, RTC, EEPROM, and temperature-sensor interfaces
- 12 V single-supply operation
- 180 × 135 mm board dimensions
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product model | AXU15EGB V2.1/V3.0 |
| MPSoC device | XCZU15EG-2FFVB1156I |
| Application processors | Quad-core ARM Cortex-A53 |
| Real-time processors | Dual-core ARM Cortex-R5F |
| Cortex-A53 frequency | Up to 1.3 GHz |
| Cortex-R5F frequency | Up to 533 MHz |
| GPU | Mali-400 MP2 |
| FPGA fabric process | 16 nm FinFET+ |
| DDR4 SDRAM, PS | 4 GB, 64-bit |
| DDR4 SDRAM, PL | 2 GB, 32-bit |
| QSPI Flash | 64 MB |
| eMMC Flash | 32 GB |
| Module connectors | 4 × Panasonic board-to-board connectors |
| FMC interface | 1 × FMC HPC |
| FMC I/O resources | 36 LVDS I/O pairs and 8 GTH transceiver pairs |
| SFP+ interfaces | 2 ×, up to 12.5 Gbps per line |
| Ethernet | 2 × Gigabit Ethernet; 1 × PS and 1 × PL |
| PCIe | 1 × PCIe interface |
| M.2 | 1 × PS-connected M.2 interface |
| Display interface | 1 × PS-connected DisplayPort |
| MIPI | 1 × 2-lane MIPI interface connected to PL |
| CAN | 2 × CAN interfaces connected to PS |
| RS485 | 2 × RS485 interfaces connected to PL |
| USB | 2 × USB 3.0 and 2 × USB 2.0 connected to PS |
| Expansion interface | 1 × 40-pin connector with 34 I/O signals and 2.54 mm spacing |
| EEPROM | 4-Kbit I²C serial EEPROM |
| Temperature monitoring | 1 × LM75 temperature sensor |
| Removable storage | 1 × Micro SD interface |
| Real-time clock | 1 × RTC |
| Indicators | 1 × power LED, 1 × done LED, 1 × PL LED |
| User controls | 1 × reset key, 1 × PS key, 1 × PL key |
| Power input | 12 V DC, single supply |
| Board dimensions | 180 × 135 mm |
3) Tech Support/Documents
Web available technical information usually covers the AXU15EGB system-on-module and carrier-board architecture, MPSoC processing resources, DDR4 memory, QSPI and eMMC storage, FMC HPC expansion, SFP+ connectivity, PCIe, M.2, DisplayPort, MIPI, Ethernet, USB, CAN, RS485, Micro SD, RTC, monitoring, power requirements, and mechanical dimensions. There are the following technical resources and support areas available for development:
- Board specifications
- Product information
- Product selection information
- V2.1 and V3.0 user manuals
- Carrier-board design guidance
- FMC expansion integration support
- High-speed communication and transceiver support
- FPGA and embedded-software development support
- Demonstration designs and tutorials
- Project-specific technical assistance
Contact Mirifica Industrial for further detailed information for your project.
