Description and Technical Data:
) Overview/Key Features

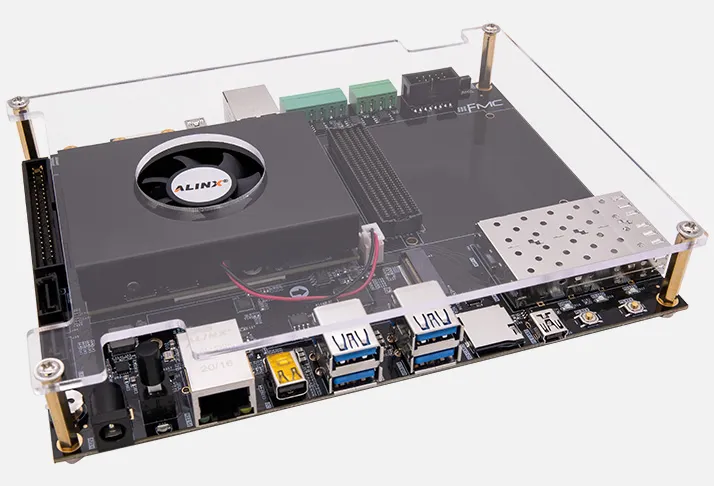

The ALINX AXU9EGB development board and evaluation kit combines an AMD/Xilinx Zynq™ UltraScale+™ MPSoC XCZU9EG-2FFVB1156I system-on-module with a feature-rich carrier board. It is designed for development in artificial intelligence, deep learning, machine vision, video and image processing, industrial control, automotive systems, communications, data acquisition, and other high-performance embedded applications.
- AMD/Xilinx Zynq™ UltraScale+™ MPSoC XCZU9EG-2FFVB1156I
- Quad-core ARM® Cortex™-A53 processor up to 1.3 GHz
- Dual-core ARM® Cortex™-R5F processor up to 533 MHz
- Mali™-400 MP2 GPU
- 16 nm FinFET+ FPGA fabric
- 4 GB 64-bit DDR4 SDRAM connected to the processing system
- 2 GB 32-bit DDR4 SDRAM connected to the programmable logic
- 64 MB QSPI Flash and 32 GB eMMC Flash
- 2 x SFP+ interfaces supporting data rates up to 12.5 Gbps per line
- FMC HPC interface with high-speed LVDS and GTH connectivity
- Gigabit Ethernet, USB, M.2, DisplayPort, MIPI, CAN, and RS485 interfaces
- Modular system-on-module construction with a dedicated base board
- 12 V single-supply operation
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| MPSoC | XCZU9EG-2FFVB1156I Zynq™ UltraScale+™ MPSoC |
| Application processor | Quad-core ARM® Cortex™-A53, up to 1.3 GHz |
| Real-time processor | Dual-core ARM® Cortex™-R5F, up to 533 MHz |
| GPU | Mali™-400 MP2 |
| FPGA technology | 16 nm FinFET+ programmable logic fabric |
| PS memory | 4 GB 64-bit DDR4 SDRAM |
| PL memory | 2 GB 32-bit DDR4 SDRAM |
| QSPI Flash | 64 MB |
| eMMC Flash | 32 GB |
| FMC interface | 1 x FMC HPC connector; 36 LVDS pairs and 8 GTH pairs |
| High-speed networking | 2 x SFP+ slots, up to 12.5 Gbps per line |
| Ethernet | 2 x Gigabit Ethernet; 1 connected to PS and 1 connected to PL |
| UART | 2 x UART with USB-to-UART connectivity; 1 connected to PS and 1 connected to PL |
| USB | 2 x USB 3.0 and 2 x USB 2.0 on PS |
| M.2 | 1 x M.2 interface connected to PS |
| Display interface | 1 x DisplayPort interface connected to PS |
| MIPI | 1 x 2-lane MIPI interface connected to PL |
| CAN | 2 x CAN interfaces connected to PS |
| RS485 | 2 x RS485 interfaces; 1 connected to PS and 1 connected to PL |
| Expansion connector | 1 x 40-pin, 2.54 mm-pitch connector with 34 I/O signals |
| Storage interface | 1 x Micro SD interface |
| EEPROM | 4-Kbit I²C serial EEPROM |
| Temperature monitoring | LM75 temperature sensor |
| Real-time clock | 1 x RTC |
| Indicators and controls | Power, configuration-done, and PL LEDs; reset, PS, and PL keys |
| Power input | 12 V DC single-supply input |
| Board dimensions | 180 x 135 mm |
3) Tech Support/Dokuments
Web available technical information usually covers the AXU9EGB development board, its system-on-module and base-board architecture, interface descriptions, memory resources, electrical connections, and supported development functions. There are the following technical resources listed for this product:
- AXU9EGB V2.1 User Manual
- AXU9EGB V3.0 User Manual
- Product information and interface documentation
- Development demos and tutorials, available on request
Contact Mirifica Industrial for further detailed information for your project.
