Description and Technical Data:
1) Overview/Key Features

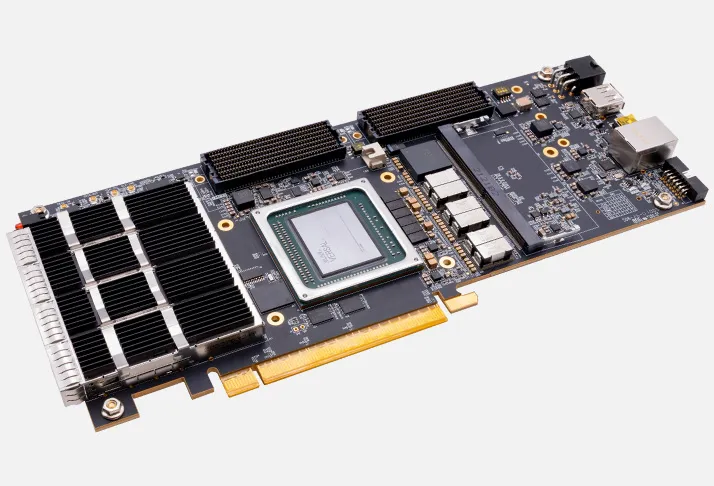

The ALINX AXVP1502P is a professional-grade development board based on the AMD Versal™ Premium XCVP1502-3HSEVSVA2785 adaptive SoC. It is designed for high-speed data exchange, storage, video transmission, deep-learning acceleration, artificial intelligence, industrial automation, advanced communications, data-center applications, and high-throughput data acquisition.
- AMD Versal Premium XCVP1502-3HSEVSVA2785 adaptive SoC
- 3.76M logic cells
- 60 GTM transceivers and 28 GTYP transceivers
- 2 × DDR4 SODIMM slots supporting up to 32 GB total memory
- 32 GB eMMC Flash and 256 MB QSPI Flash
- PCIe Gen5 x8 or PCIe Gen4 x16 interface
- 4 × QSFP-DD optical interfaces supporting up to 400 Gb/s each
- 2 × FMC+ HPC expansion connectors
- M.2 Key-M interface with PCIe Gen3 x4 connectivity
- Gigabit Ethernet, USB 2.0 Host, USB-UART, MicroSD, and JTAG interfaces
- 12 V single-supply operation
- Suitable for AI inference, real-time signal processing, high-speed networking, video processing, radar, LIDAR, and software-defined radio
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product type | Professional-grade Versal Premium development board |
| Adaptive SoC | XCVP1502-3HSEVSVA2785 |
| Logic cells | 3.76M |
| GTM transceivers | 60 |
| GTYP transceivers | 28 |
| DDR4 memory | 2 × SODIMM slots, up to 32 GB total, 72-bit wide, 2666 Mbps |
| eMMC Flash | 32 GB |
| QSPI Flash | 256 MB |
| PCI Express | PCIe Gen5 x8 or PCIe Gen4 x16 |
| Optical interfaces | 4 × QSFP-DD, up to 400 Gb/s each |
| FMC expansion | 2 × FMC+ HPC connectors |
| M.2 interface | 1 × M.2 Key-M, PCIe Gen3 x4 |
| Ethernet | 1 × Gigabit Ethernet |
| USB | 1 × USB 2.0 Host, Type-A |
| Serial interface | 1 × USB-UART |
| Removable storage | 1 × MicroSD card slot |
| Debug interface | 1 × JTAG |
| Auxiliary connectors | 5 × IPEX connectors for clocks and triggers |
| Power input | 12 V single-supply input |
| Board dimensions | 256 mm × 106.6 mm |
The AXVP1502P provides a dense combination of adaptive-SoC logic, high-speed serial transceivers, DDR4 memory, optical networking, PCIe, FMC+ expansion, and local storage for demanding compute and data-movement applications.
3) Tech Support/Dokuments
Web available technical information usually covers the AXVP1502P board architecture, the Versal Premium XCVP1502 adaptive SoC, programmable logic resources, GTM and GTYP transceivers, DDR4 memory, high-speed optical interfaces, PCIe, FMC+ expansion, storage, power input, and board dimensions.
There are the following types of technical resources associated with this platform:
- Product specifications
- Hardware user documentation
- Board interface and connector information
- Versal Premium adaptive-SoC documentation
- PCIe, QSFP-DD, FMC+, M.2, and high-speed transceiver information
- FPGA and embedded-processing development information
- AI acceleration, networking, video, storage, and data-acquisition application information
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
No separately identified add-on products were included in the available product information for the AXVP1502P. The memory, storage, power, cooling, and programming accessories identified for the development kit are listed in the package section.
5) Downloads/Links
6) What is in the package
The package contains.
- 1 x AXVP1502P development board
- 2 x 16 GB DDR4 memory modules
- 1 x 512 GB SSD
- 1 x MicroSD card with system
- 1 x preinstalled heatsink kit
- 1 x PCIe fence
- 1 x 12 V power supply and adapter
- 1 x downloader
