Description and Technical Data:
1) Overview/Key Features

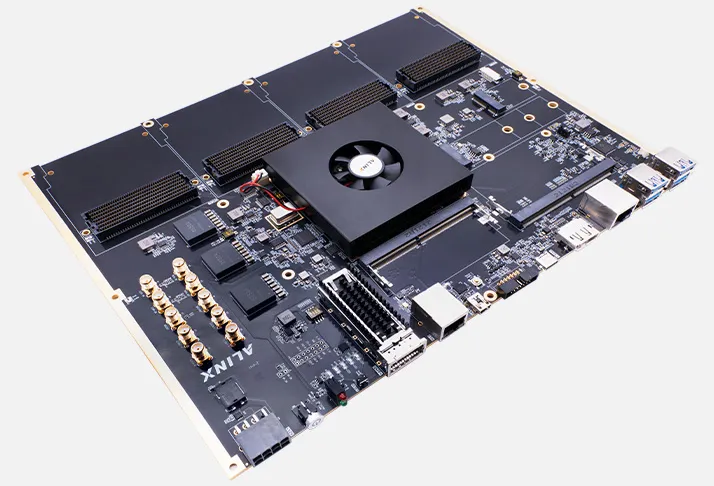

The AXVU13F is a high-performance FPGA development board and evaluation kit based on the AMD/Xilinx Virtex UltraScale+ XCVU13P device. It combines substantial FPGA processing resources, high-speed networking, expandable FMC+ connectivity, DDR4 memory, M.2 storage, DisplayPort video, and an optional NVIDIA Jetson Orin NX computing platform. The board is suitable for compute acceleration, machine learning and AI, network acceleration, wired communications, 5G baseband, radar, test and measurement, emulation, and prototyping applications.
- Virtex UltraScale+ XCVU13P FPGA with 16 nm FinFET fabric
- Integrated 100G Ethernet MAC and 150G Interlaken cores
- 1 x DDR4 SODIMM slot supporting up to 32 GB
- 4 x FMC+ expansion connectors
- 1 x 100G QSFP28 interface supporting up to 100 Gbps
- 2 x 128 MB QSPI Flash devices
- 1 x Gigabit Ethernet interface
- 1 x USB-to-UART interface and 1 x JTAG interface
- 2 x SMA interfaces: 1 x input and 1 x output
- Optional NVIDIA Jetson Orin NX 16 GB or 8 GB module support
- DisplayPort, NVMe M.2, M.2 Wi-Fi/Bluetooth, and USB interfaces
- 12 V single-supply input
- 295 x 230 mm board dimensions
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| FPGA device | XCVU13P-2FHGB2104I |
| FPGA family | Virtex UltraScale+ |
| FPGA process technology | 16 nm FinFET |
| Integrated FPGA cores | 100G Ethernet MAC and 150G Interlaken |
| DDR4 memory | 1 x SODIMM slot; supports up to 32 GB DDR4 |
| Included memory | 1 x 16 GB memory module |
| QSPI Flash | 2 x 128 MB |
| FMC+ connectors | 4 |
| FMC+1 | 120 I/O and 20 GTY lanes |
| FMC+2 | 120 I/O and 16 GTY lanes |
| FMC+3 | 72 I/O and 16 GTY lanes |
| FMC+4 | 72 I/O and 16 GTY lanes |
| QSFP28 | 1 x 100G interface, up to 100 Gbps |
| Ethernet | 1 x Gigabit Ethernet |
| UART | 1 x USB-to-UART interface |
| JTAG | 1 x JTAG interface |
| SMA interfaces | 2 x SMA; 1 x input and 1 x output |
| Optional AI computing module | NVIDIA Jetson Orin NX 16 GB or 8 GB |
| Jetson Orin NX 16 GB performance | Up to 100 TOPS |
| Jetson Orin NX 8 GB performance | Up to 70 TOPS |
| Video encoding | Up to 1 x 4K60, 3 x 4K30, 6 x 1080p60, or 12 x 1080p30 using H.265 |
| Video decoding | Up to 1 x 8K30, 2 x 4K60, 4 x 4K30, 9 x 1080p60, or 18 x 1080p30 using H.265 |
| Display output | 1 x DisplayPort; up to 4K at 30 Hz or 1080p at 60 Hz |
| NVMe storage | 1 x M.2 interface, PCIe Gen4 x2 |
| Wireless interface | 1 x M.2 Wi-Fi/Bluetooth interface |
| USB | 4 x USB 3.0 Type-A and 1 x USB 3.0 Type-C |
| Power input | 12 V single supply |
| Board dimensions | 295 x 230 mm |
3) Tech Support/Documents
Web available technical information usually covers the FPGA architecture, FPGA resources, DDR4 memory, QSPI Flash, FMC+ expansion, 100G QSFP28 networking, Jetson Orin NX integration, video processing, NVMe storage, wireless connectivity, power requirements, and supported applications. There are the following technical resources:
- AXVU13F V1.0 user manual
- Board feature and interface descriptions
- Product specifications and product selection information
- Development demonstrations and tutorials
Contact Mirifica Industrial for further detailed information for your project.
