Description and Technical Data:
1) Overview/Key Features

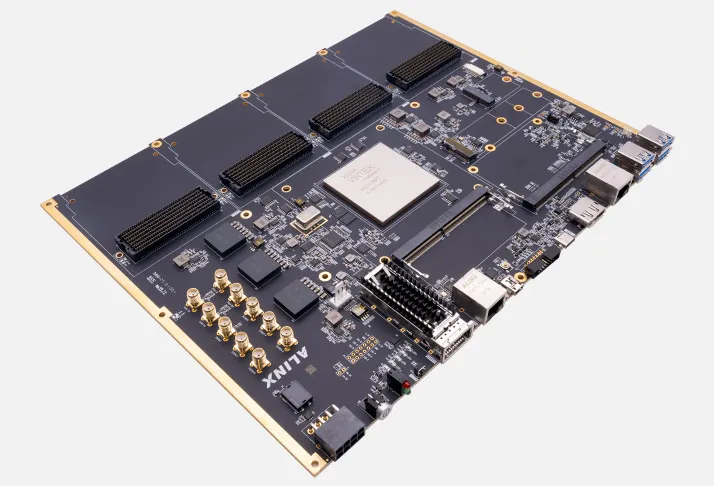

The AXVU9F is a high-performance FPGA development board and evaluation kit built around the AMD/Xilinx Virtex UltraScale+ XCVU9P FPGA. It provides a flexible platform for compute acceleration, machine learning and AI, network acceleration, wired communications, 5G baseband, radar, test and measurement, emulation, and prototyping applications.
- AMD/Xilinx Virtex UltraScale+ XCVU9P FPGA with 16 nm FinFET fabric
- Integrated 100G Ethernet MAC and 150G Interlaken cores
- 4 x FMC+ connectors for expansion and high-speed interfacing
- 1 x 100G QSFP28 interface
- DDR4 SODIMM memory interface supporting up to 32 GB
- 2 x 128 MB QSPI Flash devices
- Gigabit Ethernet, USB-to-UART, JTAG, and SMA interfaces
- 12 V single-supply operation
- 295 x 230 mm board form factor
- Compatible with optional NVIDIA Jetson Orin NX modules for accelerated video and AI applications
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| FPGA device | Virtex UltraScale+ XCVU9P-2FLGB2104 |
| FPGA process technology | 16 nm FinFET |
| Integrated FPGA functions | 100G Ethernet MAC and 150G Interlaken cores |
| DDR4 memory | 1 x DDR4 SODIMM slot; supports up to 32 GB |
| Installed memory module | 16 GB memory module |
| QSPI Flash | 2 x 128 MB |
| FMC+ connectors | 4 x FMC+ |
| FMC+1 | 120 I/O and 20 GTY lanes |
| FMC+2 | 120 I/O and 16 GTY lanes |
| FMC+3 | 72 I/O and 16 GTY lanes |
| FMC+4 | 72 I/O and 16 GTY lanes |
| High-speed networking | 1 x 100G QSFP28 interface, up to 100 Gbps |
| Ethernet | 1 x Gigabit Ethernet interface |
| UART | 1 x USB-to-UART interface |
| JTAG | 1 x JTAG interface |
| SMA interfaces | 2 x SMA; 1 x input and 1 x output |
| Power input | 12 V single-supply input |
| Board dimensions | 295 x 230 mm |
3) Tech Support/Documents
Web available technical information usually covers the board architecture, FPGA resources, FMC+ connectivity, memory interfaces, high-speed networking, power requirements, applications, and included accessories. There are the following technical resources available for the AXVU9F:
- AXVU9F V1.0 user manual
- Board feature and interface descriptions
- Product specifications and selection information
- Development demonstrations and tutorials available on request
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- NVIDIA Jetson Orin NX 16 GB module package, supporting up to 100 TOPS
- NVIDIA Jetson Orin NX 8 GB module package, supporting up to 70 TOPS
The Jetson Orin NX module packages are offered separately and are not included with the standard AXVU9F package. They provide additional processing, AI acceleration, video encoding and video decoding capabilities.
