Description and Technical Data:
1) Overview/Key Features

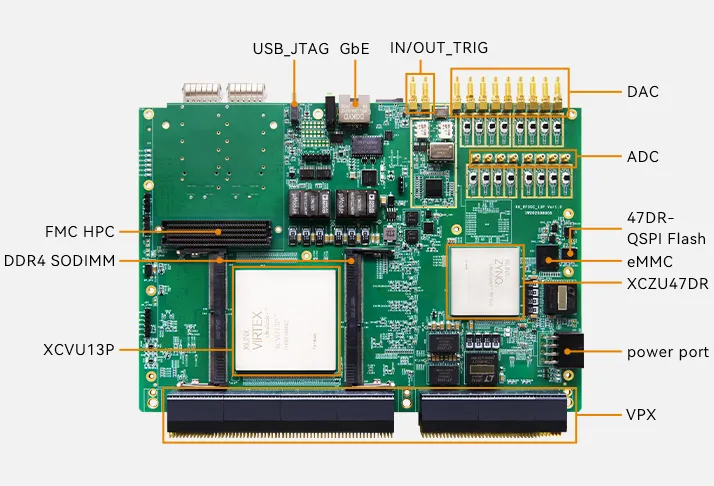

The ALINX AXW23 is a high-performance RF processing and heterogeneous FPGA platform based on the MD/Xilinx Zynq UltraScale+ RFSoC Gen 3 device with a Virtex UltraScale+ FPGA, providing integrated high-speed RF data conversion, programmable logic, embedded processing, high-speed memory, and expansion interfaces.
- AMD/Xilinx Zynq UltraScale+ RFSoC XCZU47DR with quad-core ARM Cortex-A53 processors up to 1.333 GHz
- Dual-core ARM Cortex-R5F processors up to 533 MHz
- 16 nm FinFET+ programmable logic fabric
- 8 x 14-bit RF-ADC channels with sampling rates up to 5.0 GSPS
- 8 x 14-bit RF-DAC channels with sampling rates up to 9.85 GSPS
- AMD/Xilinx Virtex UltraScale+ XCVU13P FPGA
- High-speed GTY transceivers supporting rates up to 32.75 Gb/s
- 8 GB 64-bit DDR4 SDRAM for the processing system
- 2 GB 16-bit DDR4 SDRAM for the programmable logic
- 32 GB eMMC Flash
- QSPI Flash memory for the XCZU47DR and XCVU13P devices
- FMC and VPX expansion interfaces
- Dual Gigabit Ethernet and optical-fiber connectivity
- Suitable for high-bandwidth, low-latency digital signal processing
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| RFSoC device | XCZU47DR Zynq UltraScale+ RFSoC Gen 3 |
| Processing system | Quad-core ARM Cortex-A53 up to 1.333 GHz |
| Real-time processing system | Dual-core ARM Cortex-R5F up to 533 MHz |
| RF-ADC | 8 channels, 14-bit resolution, up to 5.0 GSPS |
| RF-DAC | 8 channels, 14-bit resolution, up to 9.85 GSPS |
| RFSoC programmable logic | 16 nm FinFET+ FPGA fabric |
| Additional FPGA | XCVU13P Virtex UltraScale+ |
| Additional FPGA logic capacity | 1,728K CLBs and 3,780K logic cells |
| Additional FPGA embedded memory | 94.5 Mbit |
| Additional FPGA transceivers | 76 GTY transceivers, up to 32.75 Gb/s |
| PS DDR4 SDRAM | 8 GB, 64-bit |
| PL DDR4 SDRAM | 2 GB, 16-bit |
| RFSoC QSPI Flash | 512 MB |
| Additional FPGA QSPI Flash | 128 MB |
| eMMC Flash | 32 GB |
| Ethernet | 2 x Gigabit Ethernet interfaces |
| Optical-fiber connectivity | High-speed optical-fiber interfaces |
| Expansion interfaces | FMC and VPX interfaces |
| Typical applications | 5G communications, satellite communications, radar, early-warning systems, electronic warfare, test and measurement, and data-center acceleration |
3) Tech Support/Dokuments
Web available technical information usually covers the AXW23 RFSoC architecture, RF-ADC and RF-DAC resources, FPGA processing capability, DDR4 and Flash memory, high-speed transceivers, Ethernet and optical-fiber connectivity, FMC and VPX expansion, and application areas such as communications, radar, and test and measurement.
There are the following technical resources available:
- AXW23 product information
- RFSoC and FPGA architecture information
- Hardware interface and memory information
- RF data-conversion specifications
- High-speed transceiver information
- Application information for communications, radar, satellite systems, and data-center acceleration
- Development documentation and technical resources through the product documentation portal
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- HEA47 FPGA Dev Board & Kit with AMD Zynq RFSoC ZU47DR
- AXVU13F FPGA Dev Board & Kit with AMD Virtex UltraScale+ XCVU13P
- AXVU13G FPGA Dev Board & Kit with AMD Virtex UltraScale+ XCVU13P
- AXVU9F FPGA Dev Board & Kit with AMD Virtex UltraScale+ XCVU9P
- FL1414 Dual-Channel 14-bit ADC/DAC FMC LPC Card
5) Downloads/Links
6) What is in the package
- 1 x product
