Description and Technical Data:
1) Overview/Key Features

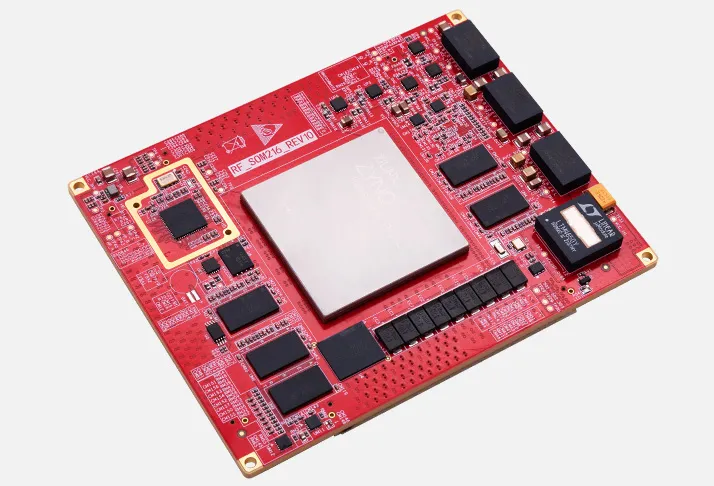

The ALINX AXW24 is a single-board computer kit based on AMD Zynq™ UltraScale+™ RFSoC technology. It is intended for high-performance FPGA development, software-defined radio, digital communications, high-speed data acquisition, radar, instrumentation, and other applications requiring integrated processing, programmable logic, and RF data-converter capabilities.
- AMD Zynq UltraScale+ RFSoC-based processing and programmable-logic platform
- Integrated RF data-converter architecture for high-speed digital signal-processing applications
- Suitable for embedded Linux, FPGA acceleration, communications, instrumentation, and research applications
- Single-board computer format for evaluation, prototyping, and system development
- Designed for use with high-speed digital interfaces and external application hardware
- Suitable as a development platform before designing a dedicated production carrier or system
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product type | Single-board computer kit / FPGA development platform |
| Device family | AMD Zynq UltraScale+ RFSoC |
| Processing architecture | Integrated ARM processing system with programmable FPGA logic |
| RF capability | Integrated RF data-converter resources for high-speed analog-to-digital and digital-to-analog signal-processing applications |
| Application areas | Software-defined radio, digital communications, radar, high-speed data acquisition, instrumentation, and embedded signal processing |
| Development use | FPGA evaluation, embedded software development, hardware prototyping, and algorithm acceleration |
| System format | Complete SBC kit rather than a standalone system-on-module |
| Manufacturer | ALINX |
The publicly available product information identifies the AXW24 as an AMD Zynq UltraScale+ RFSoC single-board computer kit. Detailed device-level values, connector assignments, memory configuration, and interface specifications should be confirmed against the applicable product documentation before final system design.
3) Tech Support/Dokuments
Web available technical information usually covers the AXW24 platform category, its AMD Zynq UltraScale+ RFSoC architecture, intended use in high-speed signal-processing applications, and its role as an FPGA development and evaluation system.
There are the following types of technical resources normally associated with this product platform:
- Product specifications
- Hardware user documentation
- Board interface and connector information
- FPGA development examples
- Embedded software and operating-system development information
- Application material for RF signal processing and communications development
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- AXW23 SBC Kit AMD Zynq UltraScale+ RFSoC
- AXW48 SBC Kit AMD Zynq UltraScale+ RFSoC
- AXW49 SBC Kit AMD Zynq UltraScale+ RFSoC
- ACRF49 SoM AMD Zynq UltraScale+ RFSoC
- ACRF47 SoM AMD Zynq UltraScale+ RFSoC
5) Downloads/Links
6) What is in the package
The package contains.
- 1 x AXW24 SBC
