Description and Technical Data:
1) Overview/Key Features

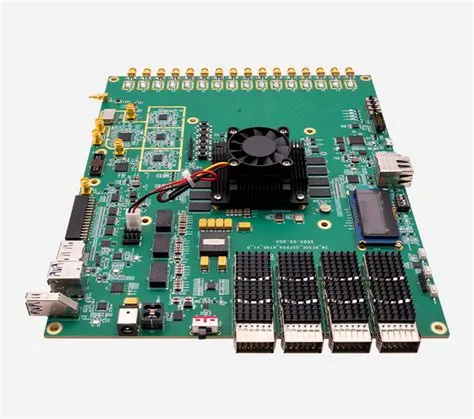

The ALINX AXW48 is a high-performance single-board computer kit based on AMD Zynq™ UltraScale+™ RFSoC technology. It is intended for demanding FPGA, embedded-processing, software-defined radio, digital communications, RF signal-processing, high-speed data-acquisition, radar, instrumentation, and research applications.
- AMD Zynq UltraScale+ RFSoC-based processing and programmable-logic platform
- Integrated RF data-converter architecture for high-speed signal-processing applications
- Combines ARM processing resources, FPGA programmable logic, and RF functions on a single device
- Suitable for embedded Linux, FPGA acceleration, RF algorithm development, and communications research
- Single-board computer format for evaluation, prototyping, and system development
- Designed for applications requiring high-throughput digital processing and high-speed data movement
- Suitable for professional development laboratories, industrial equipment development, and academic research
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product type | Single-board computer kit / RFSoC development platform |
| Device family | AMD Zynq UltraScale+ RFSoC |
| Device variant | XCZU48DR RFSoC family device |
| Processing architecture | Integrated ARM processing system with programmable FPGA logic |
| RF capability | Integrated high-speed RF analog-to-digital and digital-to-analog data-converter resources |
| Development functions | FPGA design, embedded software, RF signal processing, algorithm acceleration, and hardware prototyping |
| Application areas | Software-defined radio, digital communications, radar, high-speed data acquisition, instrumentation, and research |
| System format | Complete single-board computer kit rather than a standalone system-on-module |
The AXW48 is identified as an AXW-series SBC kit based on Zynq UltraScale+ RFSoC technology. Connector assignments, memory configuration, clocking, power requirements, and detailed interface specifications should therefore be confirmed against the applicable technical documentation before final system design.
3) Tech Support/Dokuments
Web available technical information usually covers the AXW48 platform category, its AMD Zynq UltraScale+ RFSoC architecture, intended use in high-speed signal-processing applications, and its role as an FPGA development and evaluation system.
There are the following types of technical resources associated with this platform:
- Product specifications
- Hardware user documentation
- Board interface and connector information
- FPGA development examples
- Embedded software and operating-system development information
- RF signal-processing and communications application information
- Reference material for designing systems around the RFSoC platform
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- AXW49 SBC Kit AMD Zynq UltraScale+ RFSoC
- AXW24 SBC Kit AMD Zynq UltraScale+ RFSoC
- AXW23 SBC Kit AMD Zynq UltraScale+ RFSoC
- AXRF49 Dev Kit AMD Zynq UltraScale+ RFSoC
- AXRF47 Dev Kit AMD Zynq UltraScale+ RFSoC
- ACRF49 SoM AMD Zynq UltraScale+ RFSoC
5) Downloads/Links
6) What is in the package
- 1 x AXW48 RFSoC
