Description and Technical Data:
1) Overview/Key Features

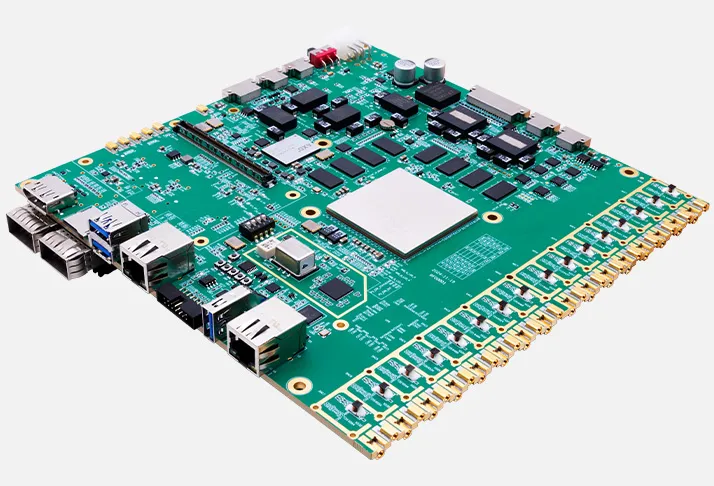

The ALINX AXW49 is a high-performance RF development board based on the AMD Zynq™ UltraScale+™ RFSoC Gen 3 XCZU49DR device. It is designed for large-scale MIMO radio, 5G baseband processing, fixed wireless access, cable access, satellite communications, testing and measurement, and other demanding RF applications.
- AMD Zynq UltraScale+ RFSoC Gen 3 XCZU49DR device
- 16-channel 14-bit RF ADCs with sampling rates up to 2.5 GSPS
- 16-channel 14-bit RF DACs with sampling rates up to 9.85 GSPS
- Integrated ARM processing system and FPGA programmable logic
- Quad-core ARM Cortex-A53 application-processing unit
- Dual-core ARM Cortex-R5 real-time processing unit
- 1 × M.2 interface for high-speed storage or expansion
- 1 × USB 3.0 interface
- 3 × Gigabit Ethernet interfaces
- 1 × MicroSD card interface
- 1 × JTAG interface
- QSFP28 and other high-speed expansion capabilities through board connectors
- 12 V single-supply operation
- 200 mm × 200 mm board form factor
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product type | RF development board |
| RFSoC device | AMD Zynq UltraScale+ RFSoC Gen 3 XCZU49DR |
| RF ADC channels | 16 channels, 14-bit resolution |
| Maximum RF ADC sampling rate | 2.5 GSPS |
| RF DAC channels | 16 channels, 14-bit resolution |
| Maximum RF DAC sampling rate | 9.85 GSPS |
| Application processor | Quad-core ARM Cortex-A53 |
| Real-time processor | Dual-core ARM Cortex-R5 |
| Storage and expansion | 1 × M.2 interface and 1 × MicroSD interface |
| USB | 1 × USB 3.0 port |
| Ethernet | 3 × Gigabit Ethernet ports |
| Debug interface | 1 × JTAG interface |
| High-speed connectivity | QSFP28 and high-speed board expansion interfaces |
| Control and expansion I/O | 32 × I/O connections |
| EEPROM | 4-Kbit I²C serial EEPROM |
| Status indicators | 4 × LEDs |
| Power input | 12 V single-supply input |
| Board dimensions | 200 mm × 200 mm |
The AXW49 specifications support high-channel-count RF processing while combining RF data converters, programmable logic, and heterogeneous ARM processing resources on a single development platform.
3) Tech Support/Dokuments
Web available technical information usually covers the AXW49 board architecture, the XCZU49DR RFSoC device, RF ADC and DAC capabilities, processor resources, high-speed interfaces, storage interfaces, power requirements, and board dimensions.
There are the following types of technical resources associated with this platform:
- Hardware user documentation
- Board specifications and interface descriptions
- RFSoC development information
- FPGA and embedded-processor development examples
- High-speed connector and expansion information
- Application information for 5G, MIMO, satellite, cable-access, and RF instrumentation systems
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- AXW47 high-performance RF development board based on the Zynq UltraScale+ RFSoC XCZU47DR
- AXW23 high-performance RF processing board for RFSoC development
- AXRF49 RF development board kit based on the ACRF49 RFSoC system-on-module
- ACW47 Zynq UltraScale+ RFSoC system-on-module
5) Downloads/Links
6) What is in the package
The package contains.
- 1 x AXW49 RF development board
