Description and Technical Data:
1) Overview/Key Features

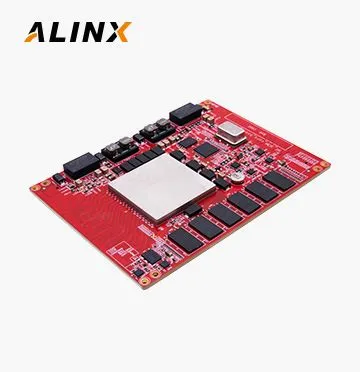

The ALINX AXW67 is a high-performance single-board computer kit based on AMD Zynq™ UltraScale+™ RFSoC technology. It is intended for demanding FPGA, embedded-processing, software-defined radio, digital communications, high-speed data-acquisition, radar, instrumentation, and research applications.
- AMD Zynq UltraScale+ RFSoC-based processing and programmable-logic platform
- Integrated ARM processing system, FPGA programmable logic, and RF data-converter resources
- Suitable for high-throughput digital signal processing and RF algorithm development
- Designed for software-defined radio, communications, radar, instrumentation, and research systems
- Supports embedded-software development, FPGA acceleration, and hardware prototyping
- Single-board computer format for evaluation and application development
- Suitable for complex systems requiring programmable processing and direct RF signal conversion
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product type | Single-board computer kit / RFSoC development platform |
| Device family | AMD Zynq UltraScale+ RFSoC |
| Device variant | XCZU67DR RFSoC family device |
| Processing architecture | Integrated ARM processing system with programmable FPGA logic |
| RF capability | Integrated high-speed RF analog-to-digital and digital-to-analog data-converter resources |
| Development functions | FPGA design, embedded software, RF signal processing, algorithm acceleration, and hardware prototyping |
| Application areas | Software-defined radio, digital communications, radar, high-speed data acquisition, instrumentation, and research |
| System format | Complete single-board computer kit rather than a standalone system-on-module |
The AXW67 is identified as an AXW-series SBC kit using a Zynq UltraScale+ RFSoC device. Memory capacity, connector assignments, clocking, power requirements, RF channel configuration, and detailed interface information should therefore be confirmed against the applicable technical documentation before final system design. Consult Mirifica Industrial.
3) Tech Support/Dokuments
Web available technical information usually covers the AXW67 platform category, its AMD Zynq UltraScale+ RFSoC architecture, intended use in high-speed signal-processing applications, and its role as an FPGA development and evaluation system.
There are the following types of technical resources associated with this platform:
- Product specifications
- Hardware user documentation
- Board interface and connector information
- RFSoC device and RF data-converter documentation
- FPGA development examples
- Embedded software and operating-system development information
- RF signal-processing and communications application information
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- AXW49 SBC Kit AMD Zynq UltraScale+ RFSoC
- AXW48 SBC Kit AMD Zynq UltraScale+ RFSoC
- AXW24 SBC Kit AMD Zynq UltraScale+ RFSoC
- AXRF49 Dev Kit AMD Zynq UltraScale+ RFSoC
- AXRF47 Dev Kit AMD Zynq UltraScale+ RFSoC
- ACRF49 SoM AMD Zynq UltraScale+ RFSoC
5) Downloads/Links
6) What is in the package
- 1 x AXW67 SBC
