Description and Technical Data:
1) Overview/Key Features

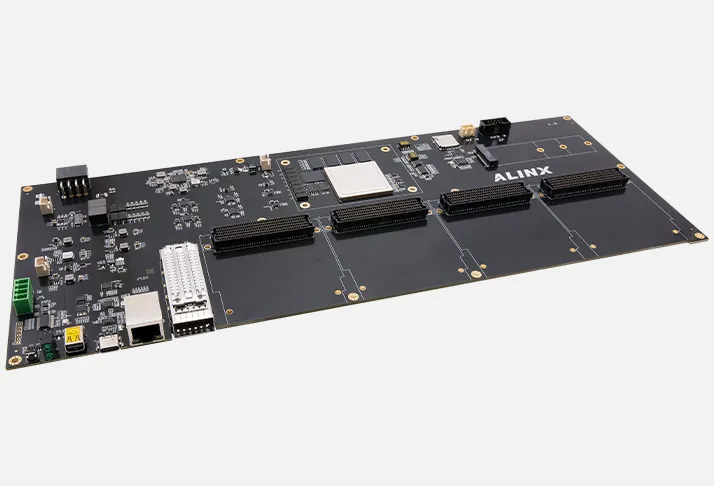

The ALINX BZ10 V2.0 is a high-performance development board based on the AMD Zynq™ UltraScale+™ MPSoC XCZU7EV-2FFVC1156I. It is designed for accelerated computing, artificial intelligence, industrial vision, digital signal processing, 5G communications, automotive systems, data-center applications, and other demanding embedded platforms.
Key features include:
- Quad-core ARM® Cortex™-A53 processor operating at up to 1.3 GHz
- Dual-core ARM® Cortex™-R5F real-time processor operating at up to 533 MHz
- Mali-400 MP2 GPU
- H.264/H.265 video codec support
- 16 nm FinFET+ programmable logic fabric
- 4 GB 64-bit DDR4 SDRAM at up to 2400 Mbps
- 64 MB QSPI Flash
- 32 GB eMMC Flash
- 4 FMC HPC expansion interfaces
- 40G QSFP+ interface
- DisplayPort video output
- PCIe Gen2 ×1 through an NVMe M.2 interface
- USB 3.0 Type-C
- Gigabit Ethernet
- Micro SD card interface
- JTAG and USB-to-UART interfaces
- 12 V single power supply
- Preinstalled heatsink kit
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product model | BZ10 V2.0 |
| MPSoC | XCZU7EV-2FFVC1156I |
| Processor architecture | Quad-core ARM Cortex-A53 and dual-core ARM Cortex-R5F |
| Cortex-A53 frequency | Up to 1.3 GHz |
| Cortex-R5F frequency | Up to 533 MHz |
| GPU | Mali-400 MP2 |
| Video codec | H.264/H.265 |
| Programmable logic process | 16 nm FinFET+ |
| DDR4 SDRAM | 4 GB, 64-bit, up to 2400 Mbps |
| QSPI Flash | 64 MB |
| eMMC Flash | 32 GB |
| FMC interfaces | 4 × FMC HPC |
| QSFP+ | 1 × 40G QSFP+ |
| Display output | 1 × DisplayPort; up to 4K at 30 Hz or 1080p at 60 Hz |
| Storage expansion | 1 × NVMe M.2, PCIe Gen2 ×1, up to 5 Gbps |
| Ethernet | 1 × PS Gigabit Ethernet |
| USB | 1 × USB 3.0 Type-C |
| UART | 1 × USB-to-UART interface |
| Debug interface | 1 × JTAG |
| EEPROM | 1 × 24LC04 |
| Removable storage | 1 × Micro SD interface |
| Indicators | 1 × power LED, 1 × done LED, 2 × user LEDs |
| User control | 1 × reset key |
| Power input | 12 V DC, single supply |
| Board dimensions | 385 × 155 mm |
3) Tech Support/Documents
Web available technical information usually covers the board architecture, processor resources, memory configuration, expansion interfaces, storage interfaces, video connectivity, networking, power requirements, board dimensions, and intended application areas. There are the following types of technical resources and support available for project development:
- Board specifications and feature descriptions
- Product selection and configuration information
- Development documentation
- Demonstration designs
- Tutorials
- FPGA, processor, and embedded-software development support
- Project-specific technical assistance
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
No specific add-on product is identified for the BZ10 on the referenced product information. The board provides 4 FMC HPC interfaces for compatible expansion hardware, but individual add-on products should be selected according to the required interface, signal type, and application.
5) Downloads/Links
6) What is in the package
The package contains.
- 1 × BZ10 development board
- 1 × preinstalled heatsink kit
- 1 × 12 V power adapter
- 1 × TF card
- 1 × Mini USB cable
- 1 × card reader
- 1 × USB downloader cable/set
