Description and Technical Data:
1) Overview/Key Features

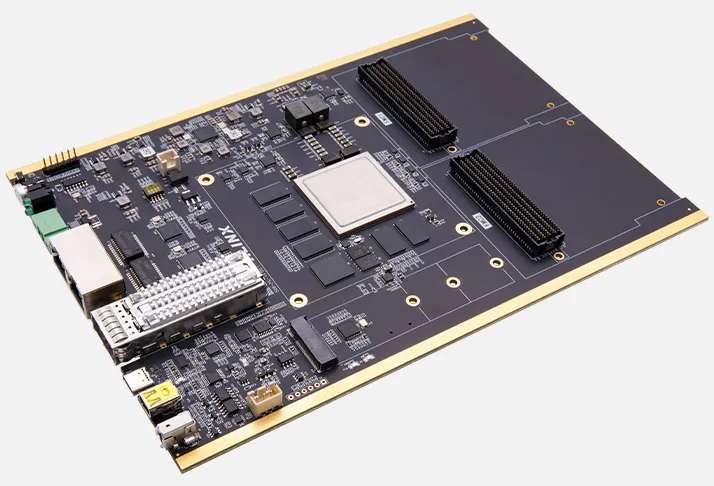

The DZ7 is a heterogeneous multiprocessing development board based on the AMD Zynq™ UltraScale+™ MPSoC XCZU7EV-2FFVC1156I. It combines quad-core application processing, dual-core real-time processing, programmable FPGA logic, video-processing capability, high-speed memory, and multiple expansion and communication interfaces. The board is suitable for embedded security, automotive systems, AV broadcasting, deep learning, digital signal processing, 5G communications, industrial control, machine vision, edge computing, data acquisition, and high-performance embedded applications.
Key features include:
- Quad-core ARM® Cortex™-A53 processor operating at up to 1.3 GHz
- Dual-core ARM® Cortex™-R5F real-time processor operating at up to 533 MHz
- Mali-400 MP2 GPU
- H.264/H.265 video codec
- 16 nm FinFET+ FPGA fabric
- 4 GB 64-bit DDR4 SDRAM
- 64 MB QSPI Flash
- 32 GB eMMC Flash
- 2 × FMC HPC expansion connectors
- 1 × DisplayPort supporting 4K at 30 Hz or 1080p at 60 Hz
- 1 × 40G QSFP+ fiber-optic interface
- 1 × M.2 PCIe Gen2 ×1 interface
- 2 × PS Gigabit Ethernet interfaces
- 1 × USB 3.0 Type-C interface
- 2 × CAN FD interfaces
- GPS interface
- USB-to-UART interface
- JTAG interface
- Micro SD interface
- Programmable active cooling fan
- 12 V single-supply operation
- 230 × 160 mm board form factor
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product model | DZ7 |
| MPSoC device | XCZU7EV-2FFVC1156I |
| Application processors | Quad-core ARM Cortex-A53 |
| Real-time processors | Dual-core ARM Cortex-R5F |
| Cortex-A53 frequency | Up to 1.3 GHz |
| Cortex-R5F frequency | Up to 533 MHz |
| GPU | Mali-400 MP2 |
| Video codec | H.264/H.265 |
| FPGA fabric process | 16 nm FinFET+ |
| DDR4 SDRAM | 4 GB, 64-bit |
| QSPI Flash | 64 MB |
| eMMC Flash | 32 GB |
| FMC expansion | 2 × FMC HPC |
| Display interface | 1 × DisplayPort |
| Display output | Up to 4K at 30 Hz or 1080p at 60 Hz |
| QSFP+ interface | 1 × 40G fiber-optic interface |
| M.2 interface | 1 × PCIe Gen2 ×1 |
| Ethernet | 2 × PS Gigabit Ethernet |
| USB | 1 × USB 3.0 Type-C |
| CAN | 2 × CAN FD |
| Positioning interface | GPS |
| UART | 1 × USB-to-UART interface |
| Debug interface | 1 × JTAG |
| EEPROM | 1 × 24LC04 |
| Removable storage | 1 × Micro SD interface |
| Boot configuration | 4-position boot-mode configuration switches |
| Indicators | 1 × power LED, 1 × done LED, 2 × user LEDs |
| User control | 1 × reset key |
| Cooling | Programmable active cooling fan |
| Power input | 12 V DC, single supply |
| Board dimensions | 230 × 160 mm |
3) Tech Support/Documents
Web available technical information usually covers the DZ7 board architecture, MPSoC processing resources, FPGA logic, DDR4 memory, Flash storage, FMC expansion, DisplayPort video, QSFP+ connectivity, M.2 storage, USB, Ethernet, CAN FD, GPS, boot configuration, cooling, power requirements, and board dimensions. There are the following technical resources and support areas available for development:
- Board specifications
- Product information
- Product selection data
- User documentation
- Demonstration designs
- Tutorials
- FPGA and embedded-software development support
- Project-specific technical assistance
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
The following related products are identified on the product page:
- ACU7EVC SoM with AMD Zynq™ UltraScale+™ MPSoC XCZU7EV
- BZ10 Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC XCZU7EV
- Z7-P Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC XCZU7EV
- Z7-A Autonomous Driving Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC XCZU7EV
- Z19-P Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC XCZU19EG
- Z19 Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC XCZU19EG
- AXU5EVB-P Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC ZU5EV
- FH9000 16-bit/14-bit RF-ADC AD9009 FMC HPC Card
- FH7000 16-bit/14-bit ADC AD9371 Communication RF FMC HPC Card
- FH7621 8K HDMI 2.1 Video Input/Output Interface HPC FMC Card
- FH9712 16-channel GMSL Autopilot Camera Acquisition HPC FMC Card
- FL9781 14-bit 500 MSPS AD9781 Output Module LPC FMC Card
5) Downloads/Links
6) What is in the package
The package contains.
- 1 × development board
- 1 × preinstalled heatsink kit
- 1 × 12 V power adapter
- 1 × TF card
- 1 × Mini USB cable
- 1 × card reader
- 1 × USB downloader cable/set
