Description and Technical Data:

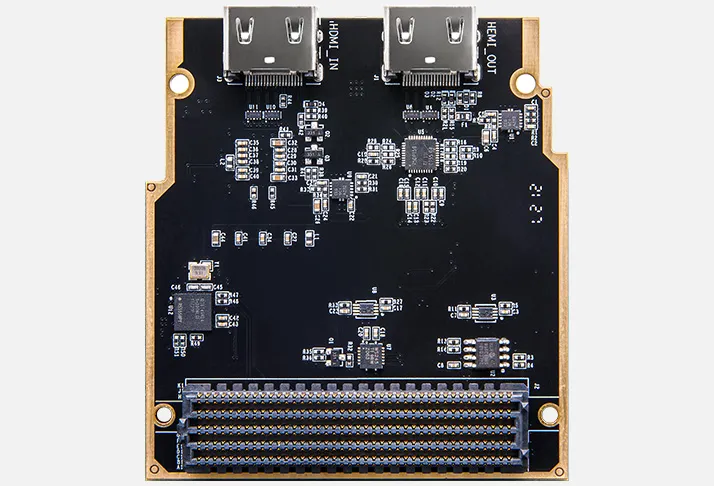

FH1159 is a module that converts the FMC interface to one HDMI input and one HDMI output. The HDMI interface supports up to 4K@60Hz.
Product Description
FH1159 is a module that converts the FMC interface to one HDMI input and one HDMI output. The HDMI interface supports up to 4K@60Hz.
FH1159 has a standard FMC HPC interface that can be connected to the ALINX FPGA carrier board for use.
Key Features
- ● 1 x HDMI video output interface, supporting up to 4K@60Hz output
● 1 x HDMI video input interface, supporting up to 4K@60Hz Input, supporting data input in different formats - ● FMC HPC connector
● Dimensions: 76.5 x 69 mm form factor
Module Features
Module Architecture
Click on the image to view a larger image.
Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.
ALINX provides product user manuals for each product.
What's Inside the Box
| FMC Cards | 1 |
|---|
Product Matrix
| Product Model | USD Price |
|---|---|
| FH1159 | 599 |
