Description and Technical Data:
1) Overview/Key Features

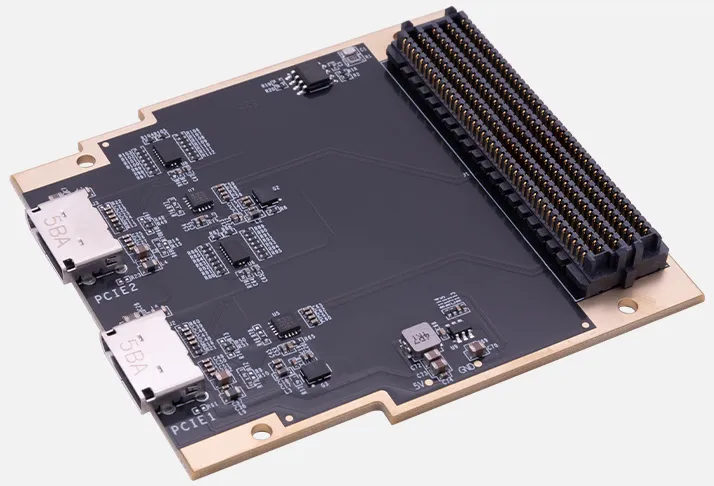

The FH4020 is a high-performance OCuLink PCIe® communication daughter card designed for FPGA development platforms. It provides 2 standard SFF-8612 OCuLink interfaces, supports the PCIe® 3.0 communication protocol, and connects to compatible FPGA development boards through a standard FMC HPC interface.
The card provides a stable, high-speed data-communication solution for data acquisition, communication test equipment, image-processing systems, and prototype-verification platforms. It supports switching between Endpoint and Root modes, allowing flexible use in different PCIe® system architectures.
- 2 x SFF-8612 OCuLink interfaces
- PCIe® 3.0 communication protocol
- Standard FMC HPC interface
- 8 Gbps single-lane data rate
- 32 Gbps total bandwidth per path
- 100 MHz differential crystal oscillator
- Switchable Endpoint and Root modes
- 76.5 x 69 mm form factor
- Designed for connection to compatible FPGA carrier boards
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product type | OCuLink PCIe® communication daughter card |
| OCuLink interfaces | 2 x SFF-8612 OCuLink interfaces |
| Communication protocol | PCIe® 3.0 |
| Host interface | Standard FMC HPC interface |
| Single-lane rate | 8 Gbps |
| Total bandwidth | 32 Gbps per path |
| Operating modes | Switchable Endpoint mode and Root mode |
| Reference clock | 100 MHz differential crystal oscillator |
| Primary applications | Data acquisition, communication testing, image processing, and prototype verification |
| Board form factor | 76.5 x 69 mm |
3) Tech Support/Documents
Web available technical information usually covers the FH4020 functional block diagram, FMC HPC host connection, SFF-8612 OCuLink interfaces, PCIe® 3.0 communication, lane-rate and bandwidth characteristics, reference-clock operation, Endpoint and Root modes, and applicable interface constraints.
There are the following types of technical resources:
- FH4020 user manual
- Functional block diagram
- Hardware interface information
- FMC HPC connection information
- OCuLink and PCIe® configuration information
- Endpoint and Root mode configuration information
- Application information for compatible FPGA development platforms
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
Compatible FPGA carrier boards with standard FMC HPC interfaces may be used with the FH4020. No additional add-on products are specified in the available product information.
