Description and Technical Data:
1) Overview/Key Features

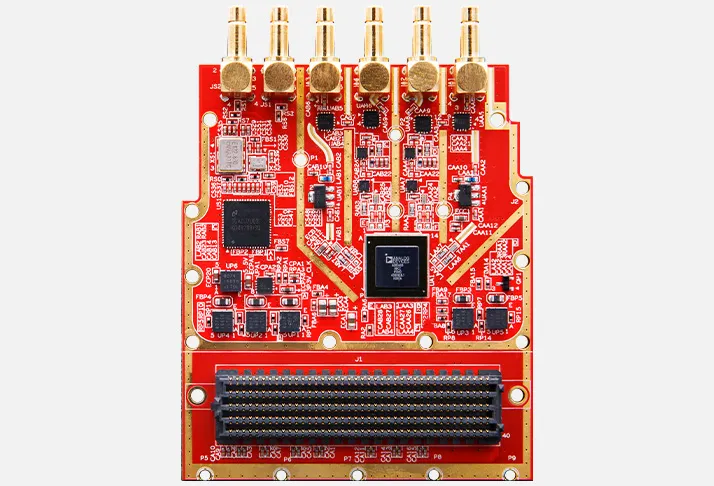

The FH7000 is a high-performance, broadband RF communication FMC card based on the VITA 57.1 FMC architecture. It uses the AD9371 agile RF transceiver as its processing core and provides a standard FMC HPC interface for connection to a compatible FPGA carrier board. The card is intended for software-defined radio, wireless communications, 3G/4G/5G infrastructure, military communications, active antenna systems, portable test equipment, microwave backhaul, electronic warfare, and Massive MIMO applications.
Key features include:
- AD9371 RF transceiver
- 300 MHz–6 GHz operating frequency range
- 16-bit ADC and 14-bit DAC
- Support for half-duplex and full-duplex operation
- Support for TDD and FDD modes
- 50 Ω RF impedance matching
- 8 MHz–100 MHz maximum receive bandwidth
- 250 MHz maximum transmit synthesis bandwidth
- Integrated power amplifier
- 14 dB power amplifier gain at 2 GHz
- Maximum RF output power of 10 dBm
- Internal or external reference-clock support
- JESD204B digital interface
- Standard FMC HPC connector
- 76.5 × 69 mm card form factor
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product model | FH7000 |
| Product type | Broadband RF communication FMC HPC card |
| RF transceiver | AD9371 |
| Operating frequency range | 300 MHz–6 GHz |
| ADC resolution | 16-bit |
| DAC resolution | 14-bit |
| Duplex modes | Half-duplex and full-duplex |
| Communication modes | TDD and FDD |
| RF impedance | 50 Ω |
| Maximum receive bandwidth | 8 MHz–100 MHz |
| Maximum transmit synthesis bandwidth | 250 MHz |
| Power amplifier | Integrated |
| Power amplifier gain | 14 dB at 2 GHz |
| Maximum RF output power | 10 dBm |
| Reference clock | Internal or external reference-clock support |
| Digital interface | JESD204B |
| FPGA interface | FMC HPC |
| Card dimensions | 76.5 × 69 mm |
| Typical applications | 3G/4G/5G base stations, military communications, active antenna systems, portable test equipment, microwave backhaul, electronic warfare, and Massive MIMO |
3) Tech Support/Documents
Web available technical information usually covers the FH7000 RF architecture, AD9371 transceiver, operating-frequency range, ADC and DAC resolution, duplex modes, TDD/FDD operation, RF impedance, receive and transmit bandwidth, power amplification, reference clocks, JESD204B interfacing, FMC HPC connectivity, card dimensions, and application areas. There are the following technical resources and support areas available for development:
- Product specifications
- Module features
- Module architecture
- User manual
- Product selection information
- FPGA carrier-board integration support
- RF configuration and evaluation guidance
- Demonstration and development support
- Project-specific technical assistance
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
The following compatible or related FPGA development boards are identified on the product page:
- Z19 Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC XCZU19EG
- Z19-P Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC XCZU19EG
- AXU15EGB Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC ZU15EG
- Z7-P Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC XCZU7EV
- AXU5EVB-P Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC ZU5EV
- AX7450B Dev Board & Kit with AMD Zynq™ 7000 SoC XC7Z100
- AX7350B Dev Board & Kit with AMD Zynq™ 7000 SoC XC7Z035
- AXKU15 FPGA Dev Board & Kit with AMD Kintex™ UltraScale+™ XCKU15P
- AXKU5 FPGA Dev Board & Kit with AMD Kintex™ UltraScale+™ XCKU5P
- AXAU15 FPGA Dev Board & Kit with AMD Artix™ UltraScale+™ XCAU15P
- AXKU062 FPGA Dev Board & Kit with AMD Kintex™ UltraScale XCKU060
- AXKU040 FPGA Dev Board & Kit with AMD Kintex™ UltraScale XCKU040
- AXKU041 FPGA Dev Board & Kit with AMD Kintex™ UltraScale XCKU040
- AX7325B FPGA Dev Board & Kit with AMD Kintex™ 7 XC7K325T
5) Downloads/Links
6) What is in the package
The package contains.
- 1 × FMC card
