Description and Technical Data:

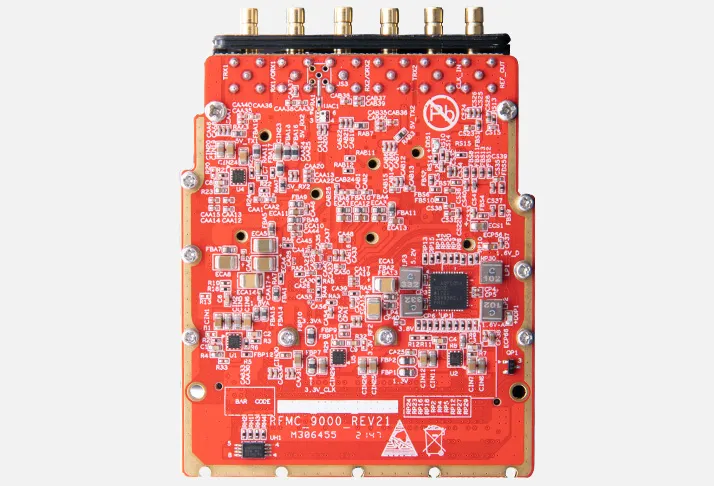

The FH9000 is a high-performance, broadband RF FMC HPC card based on the VITA 57.1 FMC architecture. It uses the AD9009 RF transceiver and is intended for software-defined radio platforms, communications equipment, radar, electronic warfare, portable test systems, and other demanding RF applications. The card provides 16-bit ADC and 14-bit DAC conversion, a 75 MHz to 6 GHz operating range, TDD support, JESD204B connectivity, and a standard FMC HPC interface for connection to a compatible FPGA carrier board.
- AD9009 RF transceiver.
- 16-bit ADC and 14-bit DAC.
- 75 MHz to 6 GHz frequency range.
- Supports TDD operation.
- 50 Ω RF impedance matching.
- Maximum RX bandwidth of 200 MHz.
- Maximum ORX observation-channel bandwidth of 450 MHz.
- Maximum TX synthesis bandwidth of 450 MHz.
- Integrated 14 dB power amplifier at 2 GHz.
- Maximum transmission output power of 10 dBm.
- Internal or external reference-clock support.
- JESD204B digital interface.
- Standard FMC HPC connector.
- Suitable for 3G, 4G, and 5G macrocell base stations, phased-array radar, TDD active antenna systems, military communications, microwave backhaul, electronic warfare, portable test equipment, and massive MIMO.
- 76.5 x 69 mm form factor.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Card type | RF FMC HPC card |
| Architecture | VITA 57.1 FMC |
| RF transceiver | AD9009 |
| ADC resolution | 16 bit |
| DAC resolution | 14 bit |
| Frequency range | 75 MHz to 6 GHz |
| Operating mode | TDD |
| RF impedance | 50 Ω |
| Maximum RX bandwidth | 200 MHz |
| Maximum ORX observation-channel bandwidth | 450 MHz |
| Maximum TX synthesis bandwidth | 450 MHz |
| Integrated power amplifier | 14 dB at 2 GHz |
| Maximum TX output power | 10 dBm |
| Reference clock | Internal or external |
| Digital interface | JESD204B |
| FMC connector | FMC HPC |
| Dimensions | 76.5 x 69 mm |
3) Tech Support/Documents
Web available technical information usually covers the FH9000 V1.0 user manual, RF transceiver architecture, ADC and DAC functions, frequency coverage, TDD operation, RX and observation-channel bandwidth, TX synthesis bandwidth, integrated power amplification, clocking, JESD204B connectivity, FMC HPC interfacing, board dimensions, and supported RF applications. There are the following technical resources:
- FH9000 V1.0 User Manual
- Module features and architecture information
- RF interface and transceiver information
- ADC, DAC, RX, ORX, and TX specifications
- Reference-clock and JESD204B interface information
- Application information for communications, radar, electronic warfare, and test equipment
Contact Mirifica Industrial for further detailed information for your project.
