Description and Technical Data:
1) Overview/Key Features

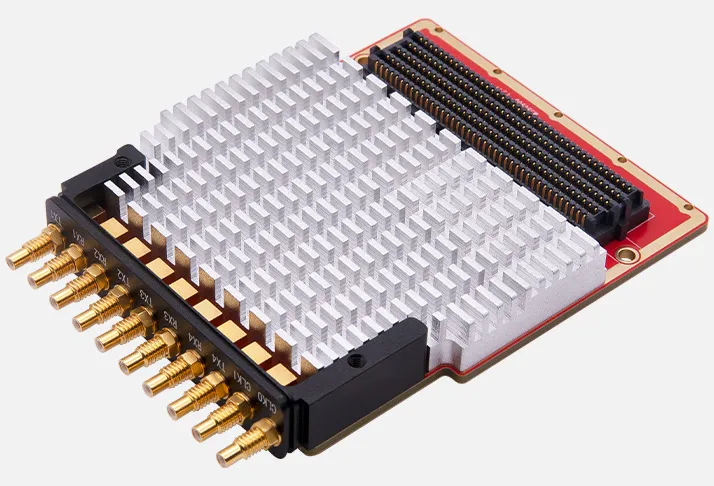

The FH9600 is a high-performance radio-frequency FMC HPC card based on the ADRV9025A transceiver. It covers the 75 MHz to 6 GHz frequency range and provides 4 transmit channels, 4 receive channels, and 2 observation receiver channels. The card supports up to 450 MHz TX synthesis bandwidth and up to 200 MHz RX bandwidth, making it suitable for 3G, 4G, and 5G communications, massive MIMO, phased-array radar, macro and small-cell base stations, and portable test equipment.
- ADRV9025A RF transceiver.
- 4 transmit channels and 4 receive channels.
- 2 observation receiver channels, each with 2 inputs.
- 75 MHz to 6 GHz center-frequency range.
- Supports TDD and FDD operating modes.
- Maximum RX bandwidth of 200 MHz.
- Maximum TX bandwidth of 200 MHz.
- Maximum TX synthesis bandwidth of 450 MHz.
- Maximum ORX observation bandwidth of 450 MHz.
- JESD204B and JESD204C digital interfaces.
- 50 Ω RF impedance matching.
- Internal or external reference-clock support.
- External LO1 and LO2 input support.
- Standard FMC HPC interface.
- 3.3 V and 12 V power inputs.
- Power consumption below 9 W.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Card type | Radio-frequency FMC HPC card |
| RF transceiver | ADRV9025A |
| Transmit channels | 4 |
| Receive channels | 4 |
| Observation receiver channels | 2, each with 2 inputs |
| Frequency range | 75 MHz to 6 GHz |
| Duplexing modes | TDD and FDD |
| RF impedance | 50 Ω |
| Maximum RX bandwidth | 200 MHz |
| Maximum TX bandwidth | 200 MHz |
| Maximum TX synthesis bandwidth | 450 MHz |
| Maximum ORX observation bandwidth | 450 MHz |
| Digital interface | JESD204B and JESD204C |
| Reference clock | Internal or external |
| External local oscillator inputs | LO1 and LO2 |
| RF interface | SSMC |
| TX output power | 5 dBm at 1.5 GHz, CW |
| TX EVM | 0.56% typical for 5G NR at 100 MHz bandwidth |
| TX gain-control range | 32 dB |
| TX gain step | 0.05 dB |
| TX ACLR | < -64 dB |
| LO suppression | -69 dBm at 2.5 GHz |
| Maximum DAC sample rate | 491.52 MS/s |
| RX sensitivity | -90 dBm at 20 MHz bandwidth |
| RX noise figure | < 11.9 dB at 2.6 GHz |
| RX EVM | < 2% |
| RX gain-control range | 30 dB |
| RX alias-band rejection | 80 dB using digital filters |
| ADC wideband SFDR | 60 dBc |
| Maximum ADC sample rate | 245.76 MS/s |
| Power input | 3.3 V and 12 V |
| Power consumption | < 9 W |
| FMC interface | FMC HPC |
3) Tech Support/Documents
Web available technical information usually covers the FH9600 user manual, RF transceiver architecture, transmit and receive performance, observation receiver channels, JESD204B and JESD204C interfaces, reference-clock and local-oscillator inputs, FMC HPC connectivity, power requirements, and supported communications and radar applications. There are the following technical resources:
- FH9600 user manual
- RF interface and transceiver information
- Module features and architecture information
- TX, RX, and observation receiver performance information
- FMC HPC and JESD204 interface information
- Application information for 3G, 4G, and 5G communications, MIMO, radar, and test equipment
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
No specific add-on products are listed on the product page.
5) Downloads/Links
6) What is in the package
The package contains.
- 1 x FMC Card
