Description and Technical Data:
1) Overview/Key Features

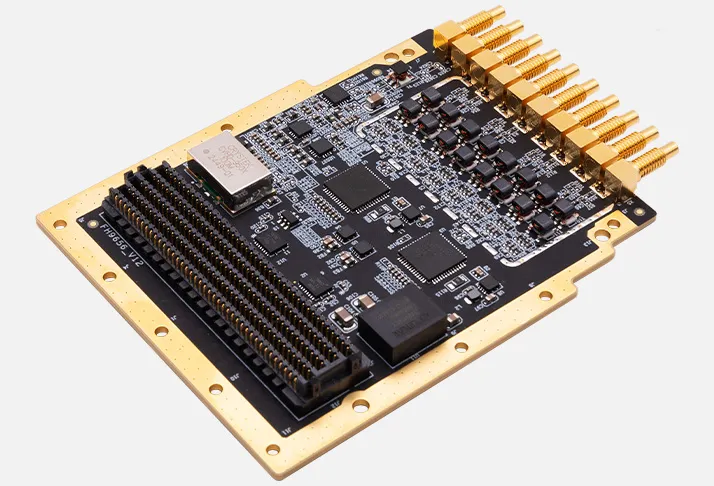

The FH9656 is a VITA 57.1-compliant FMC analog-to-digital converter card with 8 analog input channels, 16-bit resolution, and a maximum sampling rate of 125 MSPS. It is designed for high-speed, synchronized multi-channel data acquisition and connects to compatible FPGA carrier boards through an FMC-HPC interface.
The card is suitable for radar and smart-antenna systems, software-defined radio, communications research, test and measurement, and other applications requiring synchronized analog acquisition. It provides AC-coupled single-ended analog inputs, JESD204B digital output, configurable clocking, external-trigger support, and multi-board synchronization capability.
- 8 analog input channels
- 16-bit ADC resolution
- 125 MSPS sampling rate
- Single-ended, AC-coupled analog inputs
- 2.0 Vpp to 2.8 Vpp input voltage range
- 650 MHz analog input bandwidth
- JESD204B digital interface with mixed lane configuration
- FMC-HPC interface compliant with VITA 57.1
- HMC7044 high-precision clock generator
- Local-reference, external-reference, and external-VCO clock modes
- External trigger input
- On-board EEPROM and status indicators
- Natural-convection or metal-conduction cooling
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Module type | FMC analog-to-digital converter card |
| FMC standard | VITA 57.1 |
| FMC connector | HPC connector, model ASP-134488-01 |
| ADC channels | 8 |
| ADC resolution | 16 bit |
| Sampling rate | 125 MSPS |
| Analog input configuration | Single-ended, AC-coupled |
| Input voltage range | 2.0 Vpp to 2.8 Vpp |
| Analog input bandwidth | 650 MHz |
| Digital output interface | JESD204B with mixed lane configuration |
| Signal-to-noise ratio | 79.9 dBFS at 16 MHz input and 1.4 V reference; 78.1 dBFS at 64 MHz input and 1.4 V reference |
| Spurious-free dynamic range | 86 dBc to Nyquist |
| Effective number of bits | 12.9 bits at 9.7 MHz input |
| ADC reference | Internal reference-voltage source |
| Clock generator | HMC7044 |
| Clock modes | Local reference, external reference input, and external VCO input |
| Trigger | External-trigger support |
| EEPROM | 1 x on-board EEPROM |
| Status indication | On-board status indicator |
| Typical power consumption | 4 W |
| Maximum power consumption | Less than 7 W |
| Power supply | +12 V ±5% |
| Cooling | Natural convection or metal conduction cooling |
| Board dimensions | 84.1 x 69 mm |
| Operating temperature | -40 °C to +85 °C |
| Storage temperature | -55 °C to +125 °C |
| Operating humidity | 5% to 95%, non-condensing |
3) Tech Support/Documents
Web available technical information usually covers the FH9656 FMC architecture, ADC channel configuration, analog input characteristics, JESD204B connectivity, clock-generation modes, external triggering, synchronization, power requirements, cooling methods, and environmental specifications. There are the following technical resources:
- FH9656 product information
- Functional architecture and interface information
- ADC performance specifications
- JESD204B configuration information
- Clock and synchronization information
- External-trigger information
- FMC mechanical and electrical information
- Application information for radar, communications, software-defined radio, and test and measurement
- User documentation available through the product documentation area
Contact Mirifica Industrial for further detailed information for your project.
