Description and Technical Data:
1) Overview/Key Features

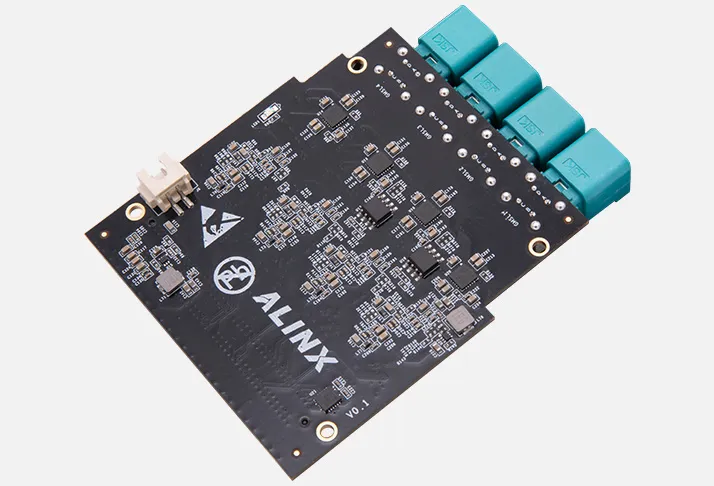

The FH9712 is a 16-channel GMSL2/GMSL1 automotive camera acquisition module implemented as an FMC HPC card. It uses 4 MAX96712 deserializer devices to decode video from up to 16 vehicle cameras and connects to a compatible FPGA carrier board through a standard FMC HPC interface. The card is intended for autonomous-driving development, multi-camera data acquisition, vehicle-vision processing, and FPGA-based image-processing systems.
Key features include:
- 16-channel GMSL1/GMSL2 camera acquisition
- 4 × MAX96712 GMSL deserializers
- Support for up to 16 cameras
- Support for cameras with resolutions up to 8 MP
- GMSL1 cable length up to 40 m at 3 Gbps
- GMSL2 cable length up to 20 m at 6 Gbps
- 16 × 4-in-1 FAKRA automotive coaxial connectors
- RAW8/10/12/14/16/20 image formats
- RGB565/666/888 image formats
- YUV422 8-bit/10-bit video formats
- Remote-camera configuration through I²C
- Standard FMC HPC connector
- FMC signal routing through the LPC portion of the connector
- 76.5 × 69 mm card form factor
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product model | FH9712 |
| Product type | 16-channel GMSL automotive camera acquisition FMC card |
| Camera interface | GMSL1/GMSL2 |
| Camera channels | 16 |
| Deserializer devices | 4 × MAX96712 |
| Maximum supported camera resolution | Up to 8 MP |
| GMSL1 data rate | 3 Gbps |
| GMSL1 cable length | Up to 40 m |
| GMSL2 data rate | 6 Gbps |
| GMSL2 cable length | Up to 20 m |
| Automotive connector | 4-in-1 FAKRA coaxial connector |
| Image formats | RAW8/10/12/14/16/20 |
| RGB formats | RGB565/666/888 |
| YUV formats | YUV422 8-bit/10-bit |
| Camera configuration | Remote-camera configuration through I²C |
| FPGA interface | Standard FMC HPC |
| FMC signal usage | LPC portion, including C, D, G, and H signal groups |
| Card dimensions | 76.5 × 69 mm |
| Primary applications | Autonomous-driving camera acquisition, vehicle vision, and FPGA-based video processing |
3) Tech Support/Documents
Web available technical information usually covers the FH9712 camera-acquisition architecture, GMSL1/GMSL2 operating modes, supported camera quantity and resolution, coaxial automotive connectivity, cable-length limits, supported image formats, remote-camera I²C configuration, FMC HPC interfacing, signal routing, card dimensions, and compatible FPGA carrier boards. There are the following technical resources and support areas available for development:
- Product specifications
- Module features
- Module architecture
- User manual
- Product selection information
- Demonstration and integration support
- FPGA carrier-board compatibility guidance
- Project-specific technical assistance
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
The following compatible or related FPGA development boards are identified on the product page:
- Z19 Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC XCZU19EG
- Z19-P Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC XCZU19EG
- AXU15EGB Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC ZU15EG
- Z7-P Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC XCZU7EV
- AXU5EVB-P Dev Board & Kit with AMD Zynq™ UltraScale+™ MPSoC ZU5EV
- AX7450B Dev Board & Kit with AMD Zynq™ 7000 SoC XC7Z100
- AX7350B Dev Board & Kit with AMD Zynq™ 7000 SoC XC7Z035
- AXKU15 FPGA Dev Board & Kit with AMD Kintex™ UltraScale+™ XCKU15P
- AXKU5 FPGA Dev Board & Kit with AMD Kintex™ UltraScale+™ XCKU5P
- AXAU15 FPGA Dev Board & Kit with AMD Artix™ UltraScale+™ XCAU15P
- AXKU062 FPGA Dev Board & Kit with AMD Kintex™ UltraScale XCKU060
- AXKU040 FPGA Dev Board & Kit with AMD Kintex™ UltraScale XCKU040
- AXKU041 FPGA Dev Board & Kit with AMD Kintex™ UltraScale XCKU040
- AX7325B FPGA Dev Board & Kit with AMD Kintex™ 7 XC7K325T
5) Downloads/Links
6) What is in the package
The package contains.
- 1 × FMC card
