FL1010 40 Pin Expansion port FMC LPC Board ()
Alinx

FL1010 40 Pin Expansion port FMC LPC Board ()

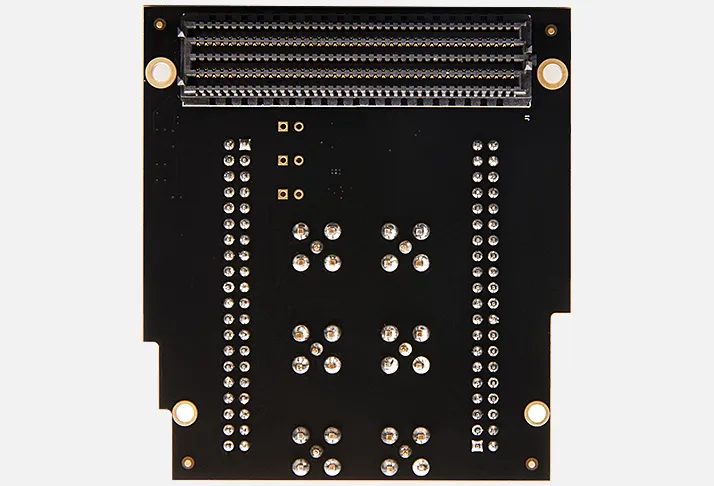

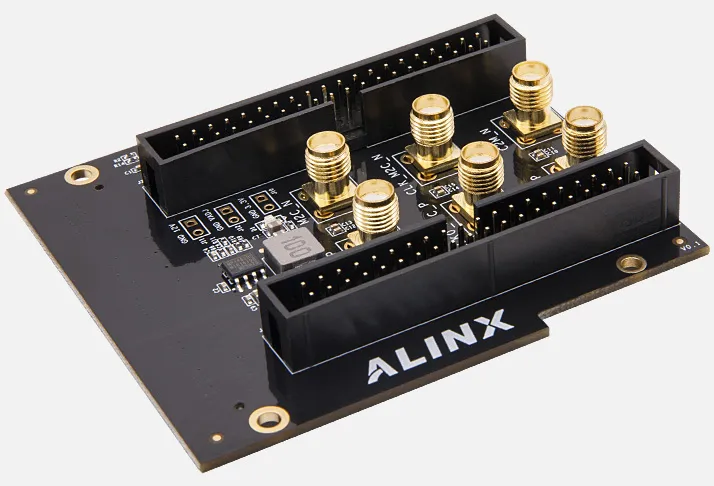

FL1010 is an FMC LPC expansion card that exposes FMC I/O through 2 standard 40-pin expansion connectors.

78.03 € 78.03 €

Add to cart
Stock Level:
  • 3 ● available now
  • more ● usually available fast (we receive 2 weekly express bulk shipments from factory stock)
Origin of Goods: China
HS Code: 84733020000


Description and Technical Data:

1) Overview/Key Features

The FL1010 is an FMC LPC expansion card that exposes FMC I/O through 2 standard 40-pin expansion connectors. It provides convenient access to 68 user I/O signals and includes SMA connectors for transceiver and reference-clock signals. The card is intended for use with compatible FPGA carrier boards and external modules connected by jumper wires or ribbon cables.

  • FMC LPC interface for connection to compatible FPGA carrier boards
  • 2 x 40-pin expansion ports with 2.54 mm pitch
  • 68 user I/O signals available through the expansion ports
  • 6 x SMA connectors for transceiver and reference-clock signals
  • Provides +5 V, +3.3 V, and GND connections through the expansion headers
  • Suitable for jumper-wire and ribbon-cable connections
  • Compatible with selected camera, display, and AD/DA expansion modules
  • PCB dimensions: approximately 76.50 mm × 69.00 mm

NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.

2) Tech Specs

SpecificationDetail
Board typeFMC I/O expansion card
FMC interfaceFMC LPC connector, ASP-134604-01
Expansion ports2 x 40-pin expansion ports
Expansion-port pitch2.54 mm, 0.1 inch
User I/O68 user I/O signals
SMA interfaces6 x SMA connectors for transceiver and reference-clock signals
Available power connections+5 V, +3.3 V, and GND
Board dimensionsApproximately 76.50 mm × 69.00 mm maximum PCB size
Connection methodSuitable for jumper wires or ribbon cables

3) Tech Support/Dokuments

Web available technical information usually covers the FMC LPC connector, the 2 x 40-pin expansion ports, the 68 available user I/O signals, the 6 SMA interfaces, power and ground connections, compatible expansion modules, and the mechanical dimensions of the card.

There are the following technical resources:

  • FL1010 user manual
  • FL1010 schematics
  • FL1010 mechanical DXF files
  • Expansion-module connection information
  • Related tutorials and application documentation

Contact Mirifica Industrial for further detailed information for your project.

4) Related Product Suggestion

The following compatible add-on products are identified for use with the FL1010 expansion ports:

  • Binocular camera modules
  • TFT LCD screen modules
  • Camera modules
  • AD/DA converter modules

5) Downloads/Links

6) What is in the package

The package contains.

  • 1 x FL1010 FMC card
  • 1 x fixing set
