Description and Technical Data:

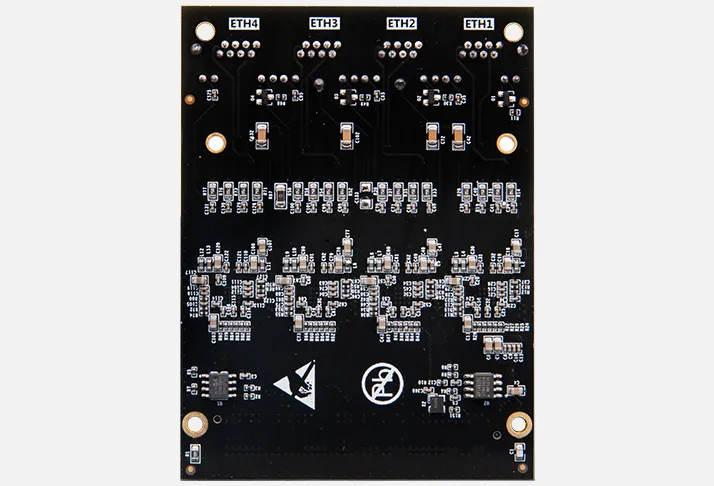

FL9031 is a 4-way 10/100/1000Mbps adaptive Ethernet communication interface module. Adopting KSZ9031RNX Ethernet PHY chip, supporting 10/100/1000 Mbps network transmission rate. The interface adopts RJ45 connector.
Product Description
FL9031 is a 4-way 10/100/1000Mbps adaptive Ethernet communication interface module. Adopting KSZ9031RNX Ethernet PHY chip, supporting 10/100/1000 Mbps network transmission rate. The interface adopts RJ45 connector.
FL9031 has a standard FMC LPC interface that can be connected to the ALINX FPGA carrier board for use.
Key Features
- ● Chip Bodel: 4 x KSZ9031
● Number of Ports: 4 x RJ45
● Working Rate: 10/100/1000Mbps Adaptive
● Communication method: RGMII - ● FMC LPC connector
● Working Temperature: -40°C-85°C
● Dimensions: 76.5 x 69 mm form factor
Module Features
Module Architecture
Click on the image to view a larger image.
Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.
ALINX provides product user manuals for each product.
What's Inside the Box
| FMC Cards | 1 |
|---|
Product Matrix
| Product Model | USD Price |
|---|---|
| FL9031 | 165 |
