Description and Technical Data:
1) Overview/Key Features

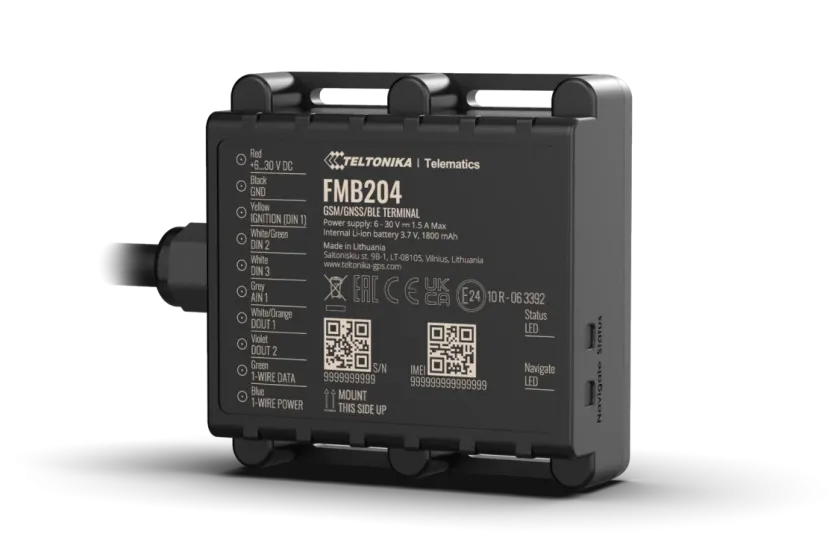

The Teltonika FMB204 is a rock-solid, compact, professional, water-resistant 2G ONLY GPRS/GNSS vehicle tracker with internal high-gain GSM and GNSS antennas, Bluetooth®, and a high-capacity internal Li-ion battery. It is designed for vehicle tracking, asset monitoring, fleet management, rental applications, insurance telematics, and other installations requiring reliable location data and a protected enclosure.
Key features include:
- Quad-band GSM connectivity: 850/900/1800/1900 MHz
- GPRS multislot Class 12
- Integrated GNSS receiver with sensitivity down to −165 dBm
- Internal high-gain GSM and GNSS antennas
- Internal 3.75 V, 1800 mAh Li-ion battery
- 128 MB internal flash memory
- Built-in movement sensor
- Bluetooth® connectivity
- 3 digital inputs
- 1 analog input with 0–30 V DC input range
- 2 open-collector digital outputs
- 1-Wire® interface for temperature sensors and iButtons
- USB interface
- SMS, TCP/IP, and UDP/IP communication
- Configurable data acquisition and transmission
- Multiple geofence areas
- Sleep, deep-sleep, and ultra-sleep modes
- Firmware updates through GPRS or USB
- Configuration updates through GPRS, SMS, or USB
- Overvoltage protection
- Operating temperature from −40 °C to +85 °C
- Water-resistant enclosure for demanding installations
The product page currently identifies the FMB204 as EOL, so availability and support should be confirmed before placing an order. Volume orders over 100 units may still be possible, consult Mirfica Industrial.
Minimum orders apply. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Details |
|---|---|
| Product type | 2G/GPRS/GNSS vehicle tracker |
| Cellular modem | Teltonika TM2500 |
| GSM bands | 850/900/1800/1900 MHz |
| GPRS | Multislot Class 12; up to 240 kbps |
| GNSS sensitivity | Up to −165 dBm |
| Power supply | 6–30 V DC |
| Maximum device consumption | 1.5 W |
| Internal memory | 128 MB flash; approximately 422,400 records stated in the specifications |
| Backup battery | Li-ion, 3.75 V, 1800 mAh |
| Digital inputs | 3 |
| Analog inputs | 1; 0–30 V DC |
| Digital outputs | 2 open-collector outputs |
| 1-Wire® | Data and power interface for compatible sensors and iButtons |
| USB | Mini-USB socket |
| Wireless short-range interface | Bluetooth® |
| Internal antennas | High-gain GSM and GNSS antennas |
| Operating temperature | −40 °C to +85 °C without battery |
| Storage temperature | −40 °C to +85 °C without battery |
| Relative humidity | 5–95%, non-condensing |
| Weight | Approximately 210 g with the 1800 mAh battery |
| Communication protocols | TCP/IP and UDP/IP |
| Protection | Overvoltage protection |
3) Tech Support/Dokuments
Web available technical information usually covers the FMB204 first-start procedure, Micro-SIM installation, wiring and cable colors, USB and Bluetooth® computer connection, configuration, firmware updates, input/output functions, 1-Wire® accessories, sleep modes, battery operation, electrical characteristics, safety precautions, and certification information.
Fee-based technical support is available from Mirifica Industrial.
4) Related Product Suggestion
The support information identifies compatible 1-Wire® accessories, including temperature sensors and iButton devices. The FMB204’s two open-collector outputs can also be used with external relays, LEDs, buzzers, or comparable control loads within the specified electrical limits.
5) Downloads/Links
- FMB204 official technical documentation and downloads
- FMB204 General Description
- FMB204 First Start Guide
- FMB204 Firmware Changelog
Mirifica Industrial can supply Teltonika products. Minimum orders apply.
6) What is in the package
The package contains.
- 1 × FMB204 device with case and wires
- 1 × integrated 3.75 V, 1800 mAh Li-ion battery
- 1 × USB cable, optional according to the manufacturer’s package description
