Description and Technical Data:
1) Overview/KeyFeatures

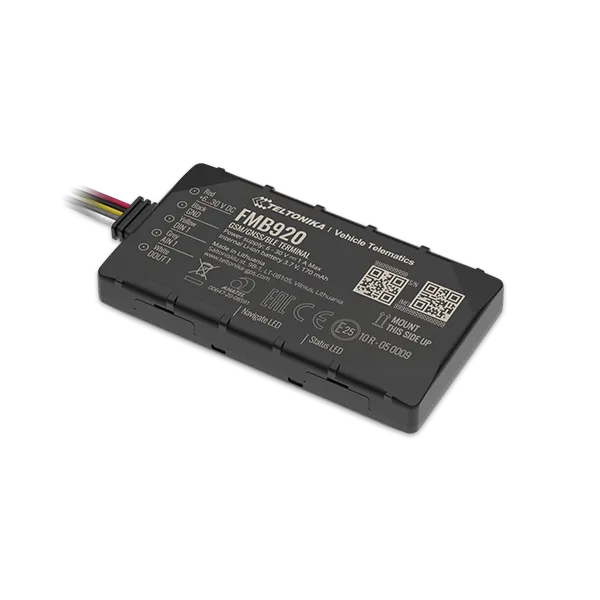

The Teltonika FMB920 is a compact 2G GSM/GPRS GNSS vehicle tracker intended for basic track-and-trace, anti-theft, rental, leasing, delivery, insurance, and fleet-management applications. Its compact 79 × 43 × 12 mm housing and 54 g weight make it suitable for discreet installation in cars, motorcycles, light commercial vehicles, and other space-constrained applications.
Key features include GPS, GLONASS, Galileo, and BeiDou positioning; quad-band GSM/GPRS connectivity; Bluetooth 4.0 Low Energy; a built-in accelerometer; internal backup battery; USB configuration; and support for Teltonika configuration and firmware-management tools. The device provides one digital input, one digital output, and one analog input for monitoring ignition, doors, alarms, sensors, and immobilization-related functions. Supported tracking events include towing, crash, unplugging, excessive idling, overspeeding, geofencing, jamming, and eco-driving events.
Minimum orders apply. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2)TechSpecs
| Specification | Detail |
|---|---|
| Device type | Compact GNSS vehicle tracker |
| Cellular connectivity | GSM/GPRS, quad-band 850/900/1800/1900 MHz |
| Supported GNSS systems | GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, DGPS, and AGPS |
| GNSS receiver | 33 channels |
| Positioning accuracy | Less than 2.5 m CEP |
| Cellular data | GPRS, SMS |
| Bluetooth | Bluetooth 4.0 + Low Energy |
| Power supply | 6–30 V DC |
| Power protection | Overvoltage protection |
| Backup battery | 170 mAh Li-ion, 0.63 Wh |
| Digital inputs | 1 |
| Digital outputs | 1; suitable for immobilization-related control applications |
| Analog inputs | 1 |
| Analog-input range | 0–30 V DC |
| Interfaces | Micro-USB; Bluetooth |
| SIM format | Micro-SIM |
| Internal memory | 128 MB flash |
| Accelerometer | Integrated |
| Housing rating | IP54 |
| Operating temperature | −40 °C to +85 °C |
| Dimensions | 79 × 43 × 12 mm |
| Weight | Approximately 54 g |
| Antennas | Internal GNSS and GSM antennas |
| Configuration and management | Teltonika Configurator, FOTA Web, FOTA, and FMBT mobile application |
| Typical monitoring functions | Ignition, door, alarm, crash, towing, unplug, overspeed, idling, geofence, jamming, and green-driving events |
3)TechSupport/Dokuments
Web available technical information usually covers product characteristics, installation and wiring, Micro-SIM insertion, USB-driver installation, configuration, LED indications, SMS configuration, mounting recommendations, safety information, firmware management, certificates, and warranty information. Teltonika documentation also describes the device pinout: power input, ground, ignition/digital input, analog input, and open-collector digital output.
Fee-based technical support is available from Mirifica Industrial.
4)RelatedProductSuggestion
Bluetooth-connected peripherals that can be used with the FMB920, including:
- Teltonika EYE beacons
- Compatible Bluetooth Low Energy sensors
- Bluetooth OBDII dongles
- Bluetooth headsets
- Bluetooth barcode scanners
These accessories can extend the tracker’s functionality for asset identification, sensor monitoring, vehicle diagnostics, communication, and barcode-related applications.
5)Downloads/Links
6)Whatisinthepackage
The package contains.
- 1 x Teltonika FMB920 tracker
- 1 x connection cable
- 1 x Quick Manual
