Description and Technical Data:
1) Overview/Key Features

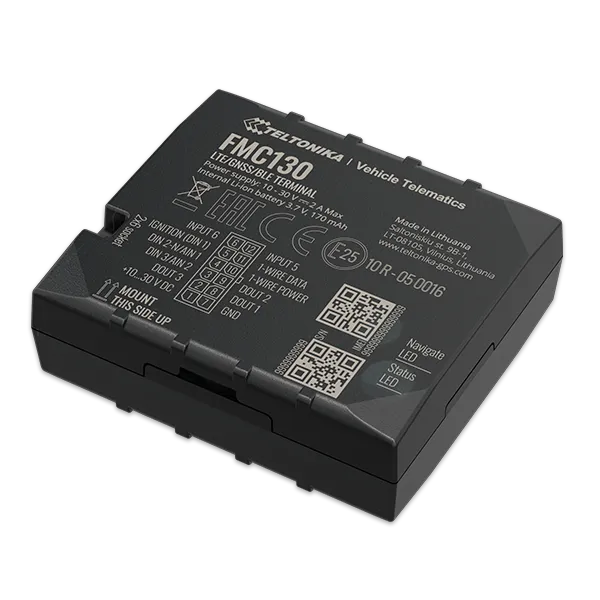

The Teltonika FMC130 is an advanced 4G LTE Cat 1 vehicle tracker with GNSS, GSM/GPRS, Bluetooth®, flexible inputs and outputs, and an internal backup battery. It is designed for fleet management, vehicle monitoring, driver-behaviour analysis, asset protection, and remote data collection.
Key features include:
- 4G LTE Cat 1, 2G GSM/GPRS and GNSS connectivity
- Internal GNSS and GSM antennas
- Bluetooth® connectivity for compatible accessories and sensors
- Flexible digital, analogue and pulse inputs
- Three digital outputs
- 1-Wire interface for compatible accessories
- LVCAN interface support
- Internal 170 mAh rechargeable Li-ion battery
- Micro-SIM support
- Micro-USB connection for configuration
- Configurable sleep modes for reduced power consumption
- IP41-rated housing
- Wide operating-voltage range of 10–30 V DC
- Suitable for a wide range of vehicle-tracking and telematics applications
Minimum orders apply. B2B: Industrial users please contact Mirifica Industrial for volume orders or specially made up variants of this product. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Details |
|---|---|
| Cellular technology | LTE Cat 1, GSM/GPRS |
| GNSS | Integrated GNSS receiver; sensitivity up to –165 dBm |
| Antennas | Internal GNSS and GSM antennas |
| SIM | Micro-SIM |
| Power supply | 10–30 V DC |
| Maximum power consumption | Up to 2 A under full load/peak conditions |
| Nominal current consumption | Less than 33 mA at 12 V, with no load |
| Inputs | Digital and analogue inputs; flexible input configuration |
| Outputs | 3 open-collector digital outputs, up to 0.5 A DC each |
| Interfaces | Micro-USB, Bluetooth®, 1-Wire and LVCAN |
| Battery | Rechargeable 3.7 V, 170 mAh Li-ion battery |
| Operating temperature without battery | –20 °C to +85 °C |
| Operating temperature with battery | –20 °C to +40 °C |
| Humidity | 5–95%, non-condensing |
| Protection rating | IP41 |
| Weight | Approximately 55 g, including housing and battery |
| Dimensions | Approximately 65 × 56.6 × 20.6 mm |
The exact cellular bands depend on the FMC130 modem and regional variant.
3) Tech Support/Dokuments
Web available technical information usually covers installation, first start-up, SIM-card insertion, wiring, pin assignments, configuration, firmware, device parameters, safety information, and troubleshooting. The manufacturer’s technical resources include the FMC130 manual, first-start instructions, configuration information, parameter lists, wiring schemes, certificates, firmware resources, and PC software documentation.
Fee-based technical support is available from Mirifica Industrial.
4) Related Product Suggestion
The manufacturer’s accessory information identifies peripheral products that may be used with compatible Teltonika tracking installations, including:
- 1-Wire temperature sensors
- 1-Wire iButton Reader
- 1-Wire RFID Reader
- Fuel and temperature sensors
- Analog fuel sensors
- Ultrasonic fuel sensors
- OBD-II to FMS Adapter
- Automotive Relay
- IP67 Case
- Barcode Scanner
Compatibility depends on the required interface, wiring, firmware and application.
5) Downloads
- FMC130 manufacturer product page
- FMC130 manufacturer technical documentation and downloads
- FMC130 First Start instructions
- FMC130 General Description
- FMC130 Parameter List
6) What is in the package
The package contains.
- 1 × FMC130 device
- 1 × input/output power-supply cable with 2 × 6-pin connector
- 1 × Micro-USB cable
- 1 × 3.7 V, 170 mAh rechargeable Li-ion battery
