Description and Technical Data:
1) Overview/Key Features

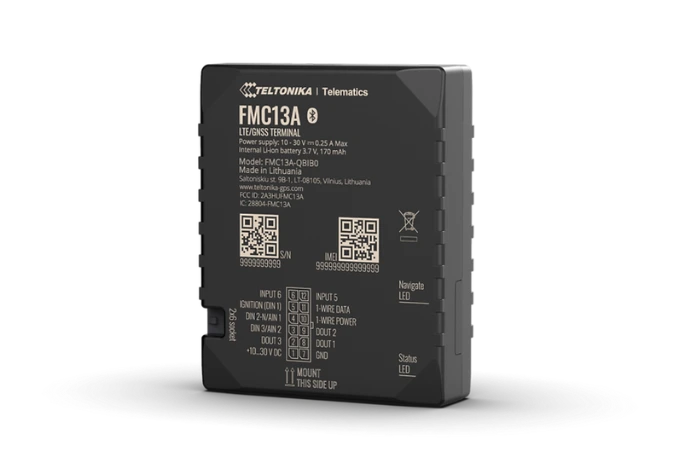

The Teltonika FMC13A is an advanced LTE Cat 1 tracker with flexible inputs, designed for North America. It combines GNSS positioning, cellular connectivity and Bluetooth® with vehicle tracking and telematics functions. Its configurable inputs support varied installation needs, while compatible CAN adapters can provide vehicle data such as fuel level, mileage and engine information. The FMC13A is an end-of-life product: ordering ended on 2024-09-01, and Teltonika lists support ending on 2026-09-01.
Minimum orders apply. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Cellular technology | LTE Cat 1, 3G and 2G |
| Regional design | North America |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS and AGPS |
| Bluetooth® | Bluetooth 4.0 + LE |
| Inputs | Configurable DIN/AIN, negative input and impulse inputs |
| Vehicle data | CAN data reading through compatible CAN adapters; readable parameters depend on vehicle and adapter |
| Battery | 170 mAh |
| Dimensions | 77 × 62 × 20 mm |
| Weight | 71.5 g |
| Operating temperature | -20 °C to +40 °C |
| Ingress protection | IP41 |
| Product status | End of life; ordering ended 2024-09-01; support ends 2026-09-01 |
3) Tech Support/Dokuments
Web available technical information usually covers first start, device configuration, the user manual, certifications and approvals, firmware information, and CAN adapter installation and setup. The FMC13A is an end-of-life product, with support scheduled to end on 2026-09-01. Fee-based technical support is available from Mirifica Industrial.
4) Related Product Suggestion
Teltonika documentation identifies LV-CAN200, ALL-CAN300 and CAN-CONTROL as compatible CAN adapters. ECAN01 and ECAN02 are also listed for use together with one of those primary CAN adapters.
5) Downloads/Links
6) What is in the package
- 1 x product
