Description and Technical Data:
1) Overview/Key Features

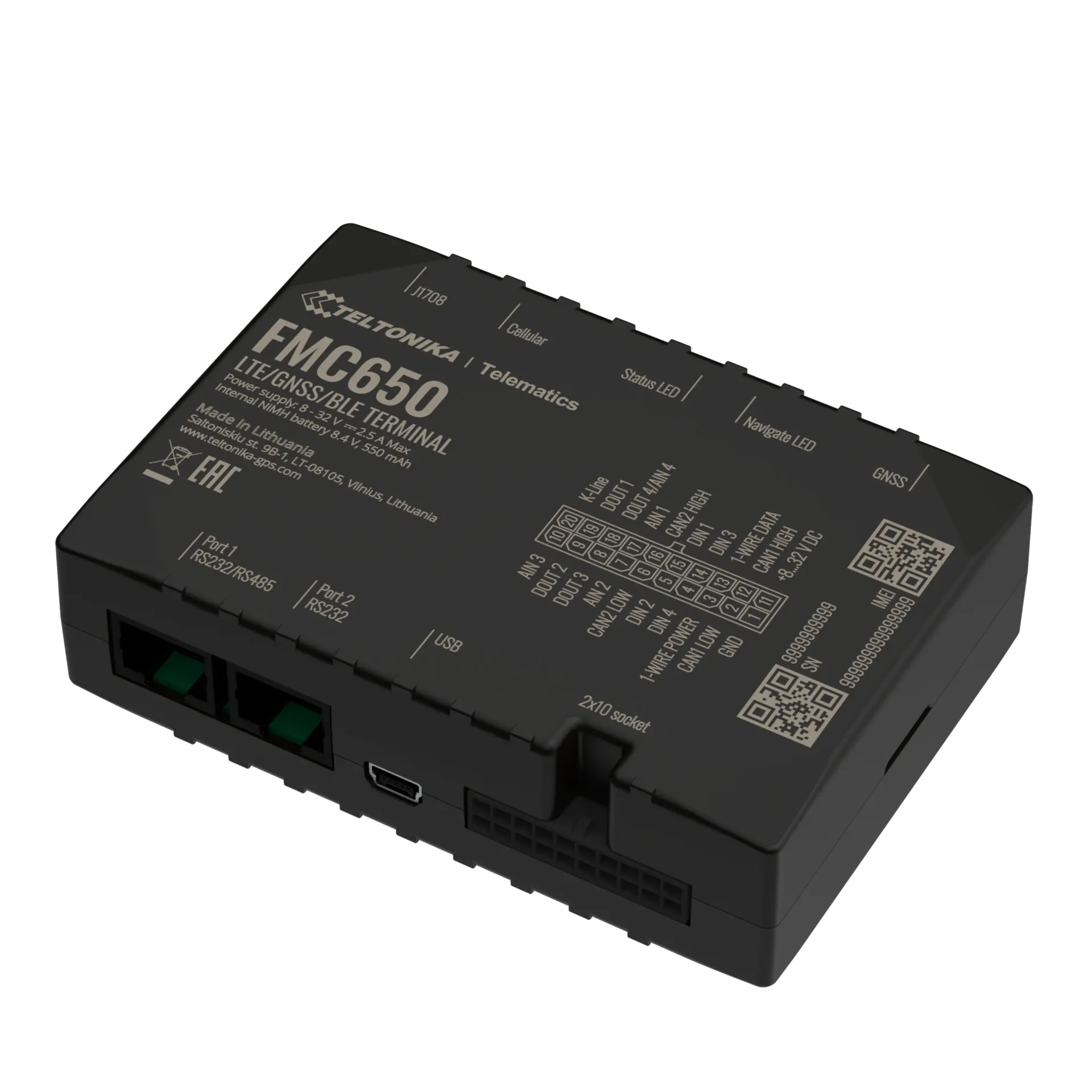

The Teltonika FMC650 is a professional 4G LTE Cat 1 vehicle tracker designed for advanced fleet-management, heavy-vehicle, logistics, construction, agricultural, refrigerated-transport, security, and emergency-service applications. It supports 2G fallback, dual-band L1/L5 GNSS, external GNSS and cellular antennas, CAN-bus data acquisition, tachograph integration, Bluetooth 5.0, and multiple serial interfaces.
Key features include:
- LTE Cat 1 connectivity with 2G GSM fallback
- Dual-band GNSS supporting GPS, GLONASS, Galileo, BeiDou, SBAS, and QZSS
- FMS CAN/J1939 data reading
- Fuel CAN/J1708 data reading
- Tachograph live data through K-Line
- Remote tachograph-file downloading
- Dual CAN interfaces with switchable CAN termination
- Two RS232 ports and one RS485 interface
- Four digital inputs, four open-collector outputs, four analog inputs, and one 1-Wire interface
- Dual-SIM or eSIM compatibility, depending on the configuration
- Bluetooth 5.0 for compatible sensors and accessories
- Built-in accelerometer and MicroSD-card support
- 550 mAh Ni-MH backup battery
- USB connection for configuration and firmware updates
- Overvoltage and reverse-polarity protection
- Vehicle supply range of 8–32 V
- Compact enclosure suitable for installation in restricted-access areas
The device is a successor to the FMC640, with an updated processor, increased internal memory, improved GNSS capability, and enhanced CAN-bus flexibility.
Minimum orders apply. Industrial users please contact Mirifica Industrial for volume orders or specially made up variants of products. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Details |
|---|---|
| Cellular technology | LTE Cat 1 with 2G GSM fallback |
| LTE bands | Variant-dependent; includes LTE-FDD B1/B2/B3/B4/B5/B7/B8/B20/B28 and LTE-TDD B38/B40/B41 |
| GNSS module | Airoha AG3335MB |
| GNSS reception | GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS |
| GNSS bands | L1 and L5 |
| GNSS sensitivity | Up to −165 dBm |
| Position accuracy | Less than 2.5 CEP |
| Processor | NXP i.MX RT1064 |
| Internal flash memory | 16 MB, with approximately 10 MB allocated for record storage |
| Interfaces | 2 × RS232, 1 × RS485, 2 × CAN/J1939, J1708 CAN, K-Line, 1-Wire, MicroSD |
| Digital inputs | 4 |
| Digital outputs | 4 open-collector outputs |
| Analog inputs | 4 |
| Bluetooth | Bluetooth 5.0 |
| Backup battery | Ni-MH, 8.4 V, 550 mAh |
| Power supply | 8–32 V DC |
| Dimensions | 104.1 × 76.8 × 31.5 mm |
| Antennas | External GNSS and GSM/LTE antennas |
| Configuration | USB, FOTA, and secured SMS commands |
| Operating functions | Real-time tracking, virtual odometer, jamming detection, event-based data acquisition, GPRS and SMS I/O events |
The exact supported cellular bands depend on the FMC650 modem variant and order code.
3) Tech Support/Dokuments
Web available technical information usually covers installation, SIM-card and battery insertion, wiring and pinout, USB connection, Windows-driver installation, Teltonika Configurator use, firmware updating, CAN and tachograph integration, LED indications, safety precautions, certifications, and general device configuration.
Fee-based technical support is available from Mirifica Industrial.
4) Related Product Suggestion
Manufacturer-mentioned add-on products and accessories include:
- Teltonika DSM driver-monitoring camera solution — intended for driver-safety and visual-monitoring applications with the FMC650.
- FMC650-compatible FMS cable to connect to a heavy vehicle through FMS connector for vehicle data, power, ignition detection, CAN, and K-Line functions.
The FMC650 product page also provides a manufacturer accessory section for compatible options.
5) Downloads
- FMC650 General Description and Specifications
- FMC650 First Start Guide
- FMC650 Certification and Approvals
- Official FMC650 product support page
6) What is in the package
The package contains:
- 1 × FMC650 device
- 4 × assembly screws
- 1 × GNSS antenna
- 1 × GSM/LTE antenna
- 1 × USB cable
- 1 × Ni-MH rechargeable backup battery, 8.4 V, 550 mAh
- 1 × power-supply and I/O cable with a 2 × 10-pin connector
The precise package contents may vary by order configuration.
