Description and Technical Data:
1) Overview/KeyFeatures

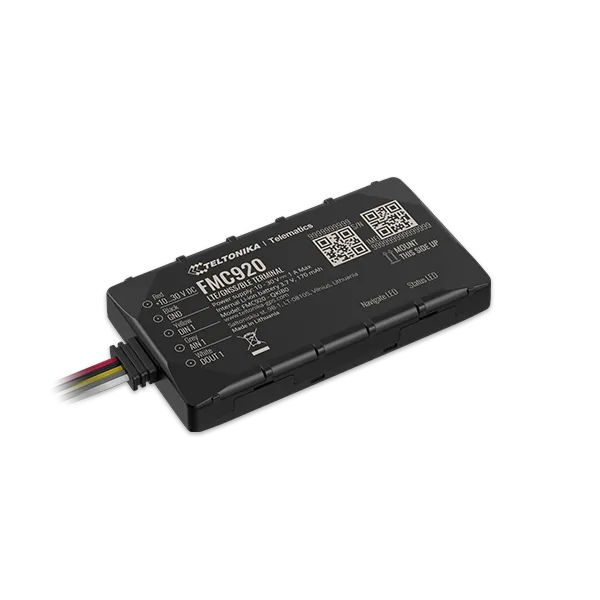

The Teltonika FMC920 is a compact 4G LTE Cat 1 GNSS tracker designed for basic vehicle tracking, fleet management, security, leasing, rental, insurance, and light commercial applications. It combines cellular connectivity, multi-constellation positioning, Bluetooth connectivity, an integrated accelerometer, and an internal backup battery in a small housing.
Key functions include live location reporting, geofencing, towing detection, crash detection, unplug detection, overspeeding detection, excessive-idling detection, green-driving analysis, ignition monitoring, and digital-output control. The FMC920 supports Bluetooth 4.0 + Low Energy peripherals and can be configured through Teltonika configuration tools. FMC920 is a basic tracker product.
Minimum orders apply. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Device type | Compact 4G LTE Cat 1 GNSS tracker |
| Cellular technology | LTE Cat 1 with fallback to 2G GSM/GPRS |
| GNSS systems | GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS |
| GNSS antenna | Internal |
| GSM antenna | Internal |
| Bluetooth | Bluetooth 4.0 + Bluetooth Low Energy |
| Power supply | 10–30 V DC |
| Digital inputs | 1; dedicated ignition input |
| Analog inputs | 1; 0–30 V DC input range |
| Digital outputs | 1; open-collector output, maximum 0.5 A DC |
| Accelerometer | Integrated 3-axis accelerometer |
| Backup battery | 170 mAh Li-ion |
| SIM format | Micro-SIM |
| Configuration interface | Micro-USB and Bluetooth |
| Internal memory | 128 MB flash |
| Housing protection | IP54 |
| Operating temperature | −40 °C to +85 °C |
| Dimensions | 79 × 43 × 12.5 mm |
| Weight | Approximately 54 g |
| Main tracking functions | Geofencing, towing, crash, unplug, overspeeding, excessive idling, green driving, and ignition detection |
| Configuration and maintenance | Teltonika Configurator, FOTA Web, FOTA, and related Teltonika tools |
3) Tech Support / Dokuments
Web available technical information usually covers first-start procedures, wiring and pinout, SIM installation, power and ignition connections, configuration, data-acquisition settings, status information, firmware updates, certificates and approvals, troubleshooting, warranty conditions, and installation guidance. Available documentation identifies the FMC920 connections as power, ground, ignition/digital input, analog input, and open-collector digital output.
Fee-based technical support is available from Mirifica Industrial.
4) Related Product Suggestion
Teltonika identifies Bluetooth sensors and beacons as compatible accessory categories for expanding the use of its GPS trackers. Suitable additions for an FMC920 installation may therefore include Teltonika Bluetooth Low Energy sensors and Teltonika EYE beacons, subject to compatibility with the selected firmware and application.
5) Downloads/Links
- FMC920 Telematics Wiki
- Teltonika Configurator
- FMC920 Datasheet (EN)
- FMC920 Quick Manual (EN)
- FMC920 Wiring scheme (EN)
6) What is in the package
The package contains.
- 1 x Teltonika FMC920 tracker
- 1 x connection cable
- 1 x Quick Manual
More Details:
TRACK
