Description and Technical Data:
1) Overview/Key Features

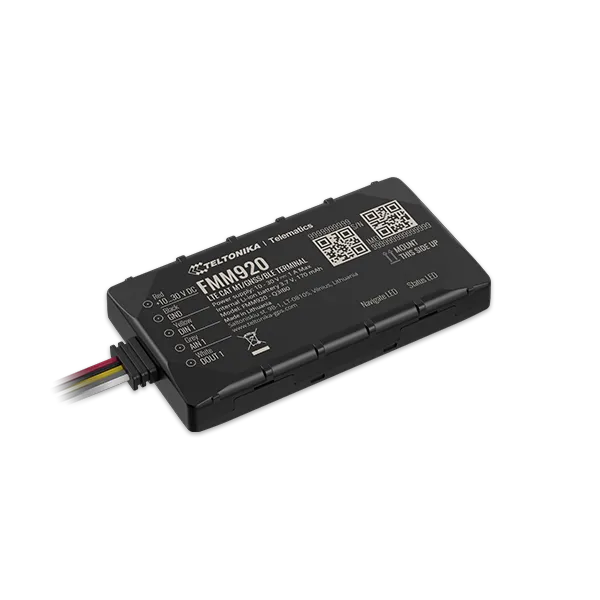

The Teltonika FMM920 is a compact 4G LTE Cat M1/NB-IoT/GSM/GPRS/GNSS vehicle and asset tracker with Bluetooth® Low Energy, internal high-gain GNSS and cellular antennas, and an integrated backup battery. It is designed for basic fleet tracking, vehicle monitoring, asset management, rental applications, theft detection, and installations where compact dimensions and low power consumption are important.
Key features include:
- LTE Cat M1 and NB-IoT connectivity with GSM/GPRS support
- Internal high-gain GNSS and cellular antennas
- GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, DGPS, and AGPS support
- Integrated Bluetooth® 4.0 + LE
- 1 digital input, 1 analog input, and 1 open-collector digital output
- Integrated accelerometer
- Jamming, towing, crash, unplug, overspeeding, excessive-idling, and geofence detection
- GNSS fuel-counter functionality
- Internal 170 mAh Li-ion backup battery
- 128 MB internal flash memory
- Micro-SIM support
- Micro-USB 2.0 interface
- FOTA and USB/Bluetooth® configuration
- Internal high-gain antennas
- Compact 79 × 43 × 12 mm enclosure
- IP54 ingress protection
- Operating temperature from −40 °C to +85 °C without the battery
- 10–30 V DC external power input with overvoltage and reverse-polarity protection
The exact cellular bands and regulatory approvals depend on the FMM920 hardware and regional variant.
Minimum orders apply. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Details |
|---|---|
| Product type | 4G LTE Cat M1/NB-IoT/GSM/GPRS/GNSS tracker |
| Cellular module | Quectel BG95-M3 with Teltonika TM2500 |
| LTE Cat M1 bands | B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85 |
| LTE Cat NB2 bands | B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85 |
| GSM bands | 850/900/1800/1900 MHz; BG95-M3 B2/B3/B5/B8 |
| LTE data rate | Up to 588 kbps downlink / 1119 kbps uplink |
| GPRS data rate | Up to 107 kbps downlink / 85.6 kbps uplink |
| GNSS systems | GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, DGPS, AGPS |
| GNSS tracking sensitivity | −165 dBm |
| Position accuracy | Less than 2.5 m CEP |
| GNSS channels | 33 tracking / 99 acquisition |
| External power | 10–30 V DC |
| Backup battery | 170 mAh Li-ion, 3.7 V, 0.63 Wh |
| Nominal consumption at 12 V | Less than 28 mA |
| Ultra-deep-sleep consumption | Less than 2 mA at 12 V |
| Digital inputs | 1 |
| Analog inputs | 1 |
| Digital outputs | 1 open-collector output |
| Bluetooth® | Bluetooth® 4.0 + LE |
| Internal memory | 128 MB flash |
| Antennas | Internal high-gain GNSS and cellular antennas |
| SIM | Micro-SIM |
| USB | Micro-USB 2.0 |
| Dimensions | 79 × 43 × 12 mm |
| Weight | 54 g |
| Ingress protection | IP54 |
| Operating temperature without battery | −40 °C to +85 °C |
| Operating temperature with battery | −20 °C to +40 °C |
| Operating humidity | 5–95%, non-condensing |
3) Tech Support/Dokuments
Web available technical information usually covers the FMM920 general description, first start, power and wiring connections, Micro-SIM installation, GNSS and cellular operation, Bluetooth® peripherals, configuration, firmware updates, input/output functions, sleep modes, tracking scenarios, battery handling, certifications, and firmware changes.
Fee-based technical support is available from Mirifica Industrial.
4) Related Product Suggestion
Possible peripherals include the Teltonika EYE Beacon, Teltonika EYE Sensor, OBDII dongle, Inateck Barcode Scanner, and universal Bluetooth® LE beacons and sensors. These accessories can extend the FMM920 with proximity detection, sensor monitoring, vehicle-data acquisition, barcode reading, or other Bluetooth® Low Energy functions. Please also note the wide range off other specil beacons and sensors in the offering of Mirfica Industrial.
5) Downloads/Links
- FMM920 General Description
- FMM920 First Start Guide
- FMM920 Firmware Changelog
- FMM920 Technical Documentation
6) What is in the package
The package contains.
- 1 × FMM920 tracker
- 1 × input/output power-supply cable, approximately 0.7 m
- 1 × 3.7 V, 170 mAh rechargeable Li-ion battery integrated into the device device.report
