Description and Technical Data:
1) Overview/Key Features

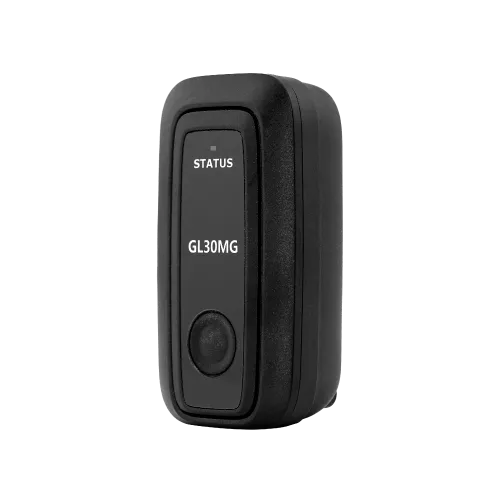

The Queclink GL30MG is a compact, battery-powered tracker for asset monitoring and personal tracking. It combines LTE Cat M1/NB2 connectivity with 2G fallback, GNSS positioning, Wi‑Fi scanning, Bluetooth Low Energy 5.2, and neighbor-cell location reporting. The IP67-rated enclosure, rechargeable 650 mAh battery, motion detection, function/SOS button, geofencing, and remote configuration make it suitable for tracking assets in both indoor and outdoor environments.
Minimum orders may apply. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Cellular connectivity | LTE Cat M1 and Cat NB2; 2G fallback |
| LTE bands | B2, B4, B12, B13, B66 |
| Positioning | GNSS; GPS, GLONASS, Galileo, and BeiDou |
| Additional location methods | Wi‑Fi scanning and neighbor-cell information |
| Bluetooth | BLE 5.2 |
| Position accuracy | Autonomous GNSS: <2.0 m CEP |
| Dimensions | 60 × 31.7 × 19.66 mm |
| Weight | 37.6 g |
| Battery | Rechargeable 650 mAh Li‑Polymer |
| Standby time | Up to 190 days in power-saving mode at one report per day under stated test conditions; continuous reporting figures vary by interval |
| Ingress protection | IP67 |
| Operating temperature | −20 °C to +60 °C |
| Data protocols | TCP, UDP, SMS |
| Buffer capacity | Up to 10,000 messages |
| Features | Motion detection, function/SOS button, internal buzzer, low-battery alarm, geofences, scheduled reports, OTA updates |
| SIM | Embedded MFF2 eSIM |
3) Tech Support/Dokuments
Web available technical information usually covers cellular bands, GNSS and location methods, battery operation, installation dimensions, operating conditions, tracking reports, geofences, alerts, and OTA configuration. Setup also requires a compatible tracking platform and the appropriate cellular service and APN settings. Fee-based technical support is available from Mirifica Industrial.
4) Related Product Suggestion
A 10-in-1 magnetic contact charging kit is listed as a supported accessory for the GL30MG.
5) Downloads/Links
6) What is in the package
- 1 x product
