Description and Technical Data:
1) Overview/Key Features

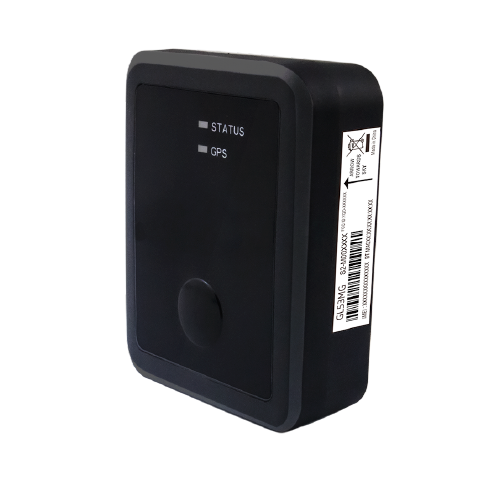

The Queclink GL53MG is a compact LTE micro waterproof standby asset tracker designed for long-term monitoring of vehicles, equipment, and other valuable assets. It supports global LTE Cat M1 and NB2 connectivity with 2G fallback, GNSS positioning, BLE connectivity, motion detection, scheduled reporting, geofencing, low-power operation, and emergency-button activation. Its small form factor, internal antennas, built-in battery, and IP67-rated enclosure support discreet installation in demanding environments.
Typical applications include stolen-vehicle recovery, vehicle-finance monitoring, car-rental fleets, leasing operations, and general asset tracking. The tracker supports TCP, UDP, and SMS communication and can store up to 10,000 buffered messages.
Minimum orders apply. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Cellular connectivity | LTE Cat M1 / NB2 with 2G EGPRS fallback |
| LTE Cat M1 bands | LTE FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B27/B28/B66/B85 |
| LTE NB2 bands | LTE FDD B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B85 |
| 2G bands | 850 / 900 / 1800 / 1900 MHz |
| GNSS | All-in-one receiver |
| Position accuracy | Autonomous: less than 2 m CEP |
| Data transmission | TCP, UDP, SMS |
| SIM | Internal 3FF SIM access |
| Antennas | Internal cellular, GNSS, and BLE antennas |
| BLE | Integrated Bluetooth Low Energy connectivity |
| Indicators | Status and GNSS LEDs |
| Power control | Power button for power-on, power-off, and status checking |
| Motion sensing | Internal 3-axis accelerometer |
| Geo-fences | Up to 20 internal geo-fence regions |
| Reporting | Scheduled timing reports and wake-up reports |
| Operating modes | Power-saving mode and continuous emergency-tracking mode |
| Low-power monitoring | Low-battery alarm and intelligent reporting-frequency adjustment |
| Enclosure | Waterproof asset-tracker enclosure; IP67 compliance is reported for the GL53MG product family |
| Dimensions | Approximately 64.6 × 51 × 28.3 mm |
| Internal battery | Rechargeable or replaceable battery specification should be confirmed against the applicable regional product variant |
| Operating temperature | Approximately −20 °C to +60 °C |
| Protocol | Queclink @Track protocol command set |
The cellular bands, interfaces, communication methods, reporting functions, and tracking features are based on the manufacturer-associated GL53MG specification information available for this product.
3) Tech Support/Dokuments
Web available technical information usually covers product features, cellular bands, GNSS performance, interfaces, operating modes, reporting functions, geo-fencing, motion detection, and @Track protocol commands. Configuration, provisioning, firmware management, server integration, and deployment guidance may require the applicable user documentation and technical assistance.
Fee-based technical support is available from Mirifica Industrial.
4) Related Product Suggestion
The Queclink GL53MG Plus is the manufacturer-related product suggestion shown for the GL53MG. It is described as an LTE micro waterproof standby asset tracker with similar asset-monitoring and vehicle-recovery applications.
5) Downloads/Links
6) What is in the package
1 x GL53MG Asset Tracker
More Details:
Queclink / Asset & Mobility
