Description and Technical Data:
1) Overview/Key Features

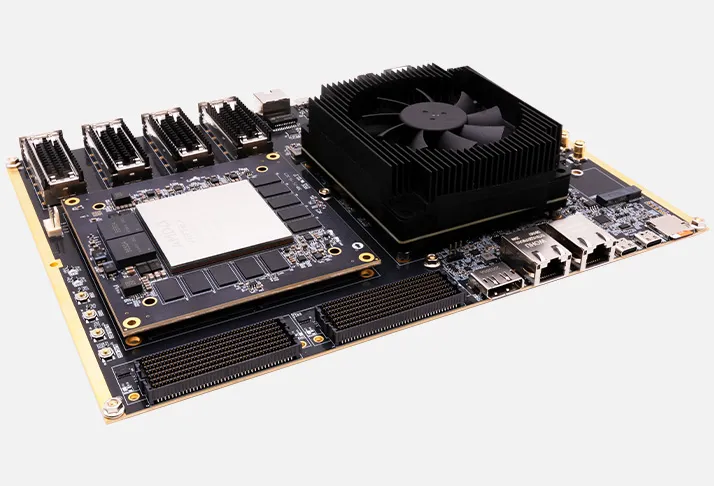

The HEA13 is a high-performance heterogeneous computing development platform based on the AMD/Xilinx Virtex UltraScale+ XCVU13P FPGA and an NVIDIA Jetson AGX Orin or Jetson Thor module interface. The platform combines the ACVU13 system-on-module, FPGA base board, and Jetson carrier interface. The FPGA and AI computing module communicate through PCIe Gen3 x8 for high-speed data exchange, collaborative processing, industrial real-time control, autonomous robotics, edge AI, and multimodal large-model inference.
- Virtex UltraScale+ XCVU13P FPGA with 16 nm FinFET fabric
- 3,780K logic cells and 12,288 DSP slices
- 76 GTY transceivers supporting data rates up to 28.21 Gbps
- 2 x 10 GB 80-bit DDR4 SDRAM interfaces
- 4 x 100 Gbps QSFP28 connectors
- 2 x FMC+ expansion connectors
- PCIe Gen3 x8 interface for Jetson AGX Orin or Jetson Thor modules
- 1 x Gigabit Ethernet interface on the programmable-logic side
- 1 x 10G Ethernet interface for NVIDIA Jetson AGX Orin modules
- 1 x 5G Ethernet interface for NVIDIA Jetson Thor modules
- 1 x M.2 SSD interface and 1 x M.2 Wi-Fi/Bluetooth interface
- 2 x USB 3.2 Type-C interfaces
- 1 x DisplayPort interface
- 1 x Micro SD interface
- 12 V single-supply input
- 271 x 200 mm board form factor
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| FPGA device | XCVU13P-2FHGB2104I |
| FPGA family | Virtex UltraScale+ |
| FPGA process technology | 16 nm FinFET |
| Logic cells | 3,780K |
| DSP slices | 12,288 |
| GTY transceivers | 76; up to 28.21 Gbps |
| DDR4 SDRAM | 20 GB total; 2 x 10 GB, 80-bit interfaces |
| QSPI Flash | 2 x 128 MB |
| Jetson module interface | 1 x NVIDIA Jetson AGX Orin or Jetson Thor series module interface |
| Jetson interconnect | PCIe Gen3 x8 |
| QSFP28 | 4 x 100 Gbps connectors |
| FMC+ expansion | 2 connectors |
| FMC1+ | 122 FPGA I/O and 16 GTY lanes |
| FMC2+ | 168 FPGA I/O and 16 GTY lanes |
| Programmable-logic Ethernet | 1 x Gigabit Ethernet |
| Jetson AGX Orin Ethernet | 1 x 10G Ethernet |
| Jetson Thor Ethernet | 1 x 5G Ethernet |
| Display interface | 1 x DisplayPort |
| Storage interface | 1 x M.2 SSD and 1 x Micro SD |
| Wireless interface | 1 x M.2 Wi-Fi/Bluetooth |
| USB | 2 x USB 3.2 Type-C |
| Serial interface | 1 x UART |
| SMA interfaces | 2 x SMA inputs |
| User controls | 3 x push buttons and 3 x LEDs |
| Power input | 12 V single supply |
| Dimensions | 271 x 200 mm |
3) Tech Support/Documents
Web available technical information usually covers the ACVU13 system-on-module, base-board architecture, FPGA resources, Jetson module interface, PCIe Gen3 x8 connection, high-speed Ethernet, QSFP28 networking, FMC+ expansion, memory, storage, power, and supported AI and acceleration applications. There are the following technical resources:
- HEA13 V1.0 user manual
- Board and system-on-module feature descriptions
- Product specifications and product selection information
- Demonstrations and tutorials for development support
Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
- NVIDIA Jetson AGX Orin 32 GB module
- NVIDIA Jetson AGX Orin 64 GB module
- NVIDIA Jetson Thor T5000 module
5) Downloads/Links
6) What is in the package
The package contains.
- 1 x system-on-module
- 1 x base board
- 1 x Mini USB cable
- 1 x USB downloader cable/set
- 1 x 12 V power adapter
- 1 x preinstalled heatsink kit
- 1 x SD card
