Description and Technical Data:
1) Overview/Key Features

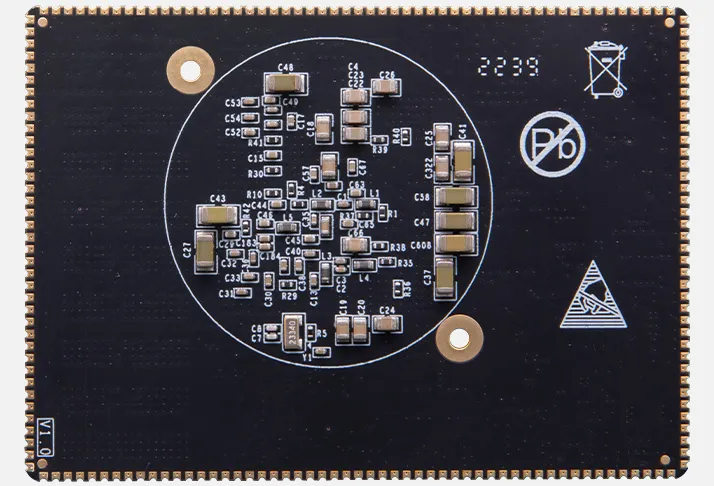

The M2CG is a compact Zynq UltraScale+ MPSoC system-on-module designed to bring processing and programmable logic into embedded systems. It combines an XCZU2CG device with DDR4 memory, eMMC and QSPI storage, and user I/O in a castellated-hole module.
- XCZU2CG-1SFVC784E Zynq UltraScale+ MPSoC
- Dual-core ARM Cortex-A53 application processor and dual-core ARM Cortex-R5F real-time processor
- 4 GB DDR4 SDRAM, 32 MB QSPI Flash, and 8 GB eMMC Flash
- PCIe Gen2 ×1 through the processing system
- 5 PS MIOs and 102 FPGA I/Os
- 12 V single-supply input
- 70 × 50 mm module
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Product type | Zynq UltraScale+ MPSoC system-on-module |
| MPSoC device | XCZU2CG-1SFVC784E |
| Application processor | Dual-core ARM Cortex-A53 |
| Real-time processor | Dual-core ARM Cortex-R5F |
| DDR4 SDRAM | 4 GB, 64-bit |
| QSPI Flash | 32 MB |
| eMMC Flash | 8 GB |
| PS PCIe | Gen2 ×1 |
| PS MIOs | 5 |
| FPGA I/Os | 102 (6 HD + 96 HP) |
| Operating temperature | 0 °C to 70 °C |
| Power input | 12 V single supply |
| Module form factor | Castellated-hole |
| Dimensions | 70 × 50 mm |
3) Tech Support/Dokuments
Web available technical information usually covers the module’s MPSoC, memory and storage, user I/O, power, operating temperature, and mechanical dimensions. There are the following technical resources: documentation, demos, and tutorials. Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
The M2EG, M3CG, M3EG, M4CG, M4EG, M4EV, and M5EV are listed as related models in the M-series SoM product family. The FAN8060 Heatsink Kit is mentioned as an optional cooling accessory.
5) Downloads/Links
- No functioning product-specific download links could be confirmed.
