Description and Technical Data:
1) Overview/Key Features

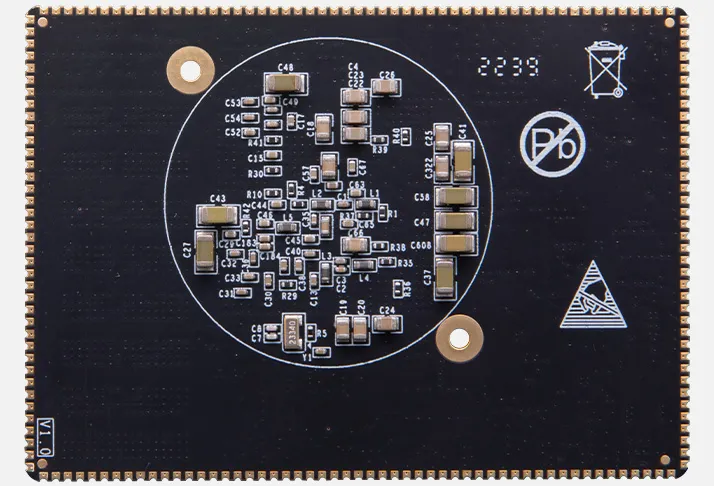

The M3EG is a 70 × 50 mm Zynq UltraScale+ MPSoC System-on-Module based on the XCZU3EG-1SFVC784I. It combines quad-core Arm Cortex-A53 and dual-core Arm Cortex-R5 processors with FPGA logic, 4 GB of DDR4 memory, 8 GB of eMMC, and 32 MB of QSPI flash. The module has 102 FPGA I/Os and is designed for embedded processing applications, including industrial, video, communications, and AI systems.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| MPSoC | XCZU3EG-1SFVC784I |
| Application processor | Quad-core Arm Cortex-A53, up to 1.3 GHz |
| Real-time processor | Dual-core Arm Cortex-R5, up to 533 MHz |
| GPU | Mali-400 MP2 |
| DDR4 memory | 4 GB; 64-bit bus |
| QSPI flash | 32 MB |
| eMMC flash | 8 GB |
| PCIe interface | Gen2 ×1 |
| User I/O | 22 PS MIOs; 102 FPGA I/Os (6 HD and 96 HP) |
| Supply voltage | 12 V DC |
| Operating temperature | −40 °C to +85 °C |
| Module dimensions | 70 × 50 mm |
| Form factor | Castellated-hole module |
3) Tech Support/Dokuments
Web available technical information usually covers the MPSoC, processors, memory, FPGA I/O, power requirements, operating temperature, and module dimensions. There are the following technical resources: documentation, demos, and tutorials. Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
The AXU3EG development board is listed as a compatible platform for the M3EG module.
5) Downloads/Links
No functioning download links listed under the product’s Documentation section could be confirmed.
6) What is in the package
The package contains.
- 1 x M3EG System-on-Module
