Description and Technical Data:
1) Overview/Key Features

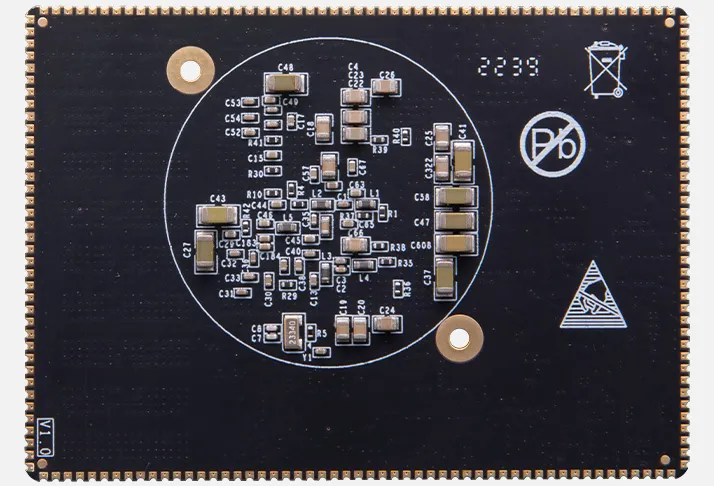

The M5EV is a 70 × 50 mm System-on-Module based on the XCZU5EV-2SFVC784I Zynq UltraScale+ MPSoC. It combines quad-core Arm Cortex-A53 and dual-core Arm Cortex-R5 processors with 4 GB of DDR4 memory, 8 GB of eMMC, and 32 MB of QSPI flash. The module also provides 102 FPGA I/Os and a PCIe Gen2 ×1 interface.
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| MPSoC | XCZU5EV-2SFVC784I |
| Application processor | Quad-core Arm Cortex-A53, up to 1.3 GHz |
| Real-time processor | Dual-core Arm Cortex-R5, up to 533 MHz |
| GPU | Mali-400 MP2 |
| DDR4 memory | 4 GB, 64-bit bus |
| QSPI flash | 32 MB |
| eMMC flash | 8 GB |
| PCIe interface | Gen2 ×1 |
| User I/O | 22 PS MIOs; 102 FPGA I/Os (6 HD and 96 HP) |
| Power supply | 12 V DC |
| Operating temperature | −40 °C to +85 °C |
| Module dimensions | 70 × 50 mm |
3) Tech Support/Dokuments
Web available technical information usually covers the MPSoC, memory, I/O, interface, power requirements, and module dimensions. There are the following technical resources: documentation, demos, and tutorials. Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
The FAN8060 heatsink kit is recommended for cooling the module when designing a baseboard.
