Description and Technical Data:
1) Overview/Key Features

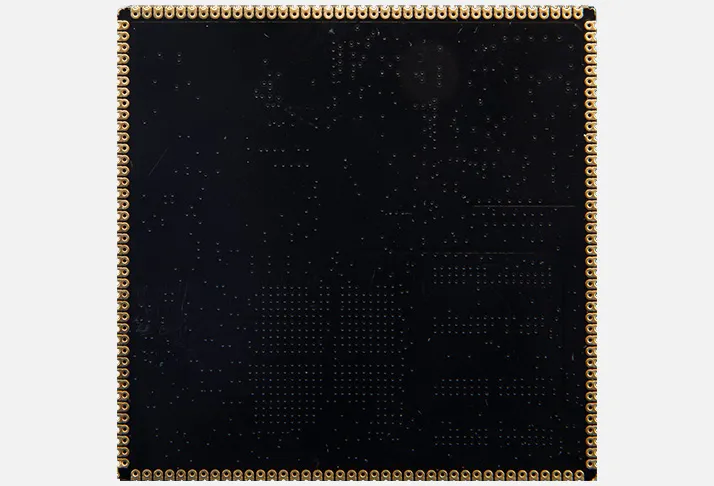

The M7010 is a compact Zynq-7000 system-on-module for embedded processing applications. It combines an XC7Z010 device, dual-core ARM Cortex-A9 processing, and programmable FPGA logic with onboard DDR3 memory and flash storage. Its castellated-hole format supports integration into custom carrier designs. Suitable application areas include industrial control, communications, automotive systems, medical equipment, and video and image processing.
- XC7Z010 Zynq-7000 SoC with dual-core ARM Cortex-A9 processor
- 28 nm Artix-7 FPGA fabric
- 512 MB DDR3 SDRAM and 32 MB QSPI Flash
- 8 GB eMMC Flash
- 7 PS MIOs and 100 FPGA I/Os
- 5 V single-supply input; operating temperature range of -40°C to +85°C
- Module dimensions: 53.8 × 53.8 mm
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Module model | M7010 |
| SoC | XC7Z010-1CLG400I |
| Processor | Dual-core ARM Cortex-A9, up to 667 MHz |
| FPGA fabric | 28 nm Artix-7 |
| DDR3 SDRAM | 512 MB, 32-bit, on processing system |
| QSPI Flash | 32 MB |
| eMMC Flash | 8 GB |
| PS MIOs | 7 |
| FPGA I/Os (PL) | 100 |
| Operating temperature | -40°C to +85°C |
| Supply voltage | 5 V |
| Form factor | Castellated-hole module |
| Dimensions | 53.8 × 53.8 mm |
3) Tech Support/Dokuments
Web available technical information usually covers the module’s hardware features, specifications, and application areas. There are the following technical resources: complete documentation, demos, and tutorials. Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
The M7020 is mentioned as a related SoM model in the product information. It offers a higher-capacity Zynq-7000 configuration within the same module family.
5) Downloads/Links
- No functioning product-specific download links could be confirmed.
6) What is in the package
The package contains.
