Description and Technical Data:
1) Overview/Key Features

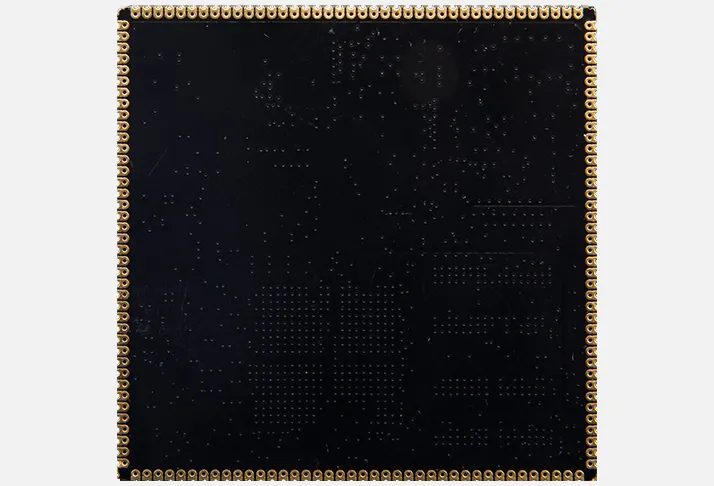

The M7020 is a Zynq-7000 system-on-module combining an ARM processor system with programmable logic. Its compact castellated-hole format is intended for integration into custom carrier boards and embedded systems.
- XC7Z020 Zynq-7000 SoC with dual-core ARM Cortex-A9 processor
- 1 GB DDR3 SDRAM
- 32 MB QSPI Flash and 8 GB eMMC Flash
- 7 PS MIOs and 100 FPGA I/Os
- 5 V power input
- 53.8 × 53.8 mm module
NCNR non cancelable - non returnable product. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Module model | M7020 |
| SoC | XC7Z020-1CLG400I |
| Processor | Dual-core ARM Cortex-A9 |
| DDR3 SDRAM | 1 GB |
| QSPI Flash | 32 MB |
| eMMC Flash | 8 GB |
| PS MIOs | 7 |
| FPGA I/Os | 100 |
| Power input | 5 V |
| Module form factor | Castellated-hole |
| Dimensions | 53.8 × 53.8 mm |
3) Tech Support/Dokuments
Web available technical information usually covers the module’s processor, programmable logic, memory, storage, I/O, power, and dimensions. There are the following technical resources: documentation, demos, and tutorials. Contact Mirifica Industrial for further detailed information for your project.
4) Related Product Suggestion
The M7010 is a related Zynq-7000 SoM model in the same product family, with a different SoC configuration.
5) Downloads/Links
- No functioning product-specific download links could be confirmed.
6) What is in the package
1 x product
