Description and Technical Data:
The P100 module is high-end PANGOMICRO Logos-2 series device that Supporting high-performance modules and interfaces such as SERDES high-speed interface, PCIe Gen3, DDR3, etc, providing customers with high-performance programmable solutions.
Product Description
The P100 module is high-end PANGOMICRO Logos-2 series device that Supporting high-performance modules and interfaces such as SERDES high-speed interface, PCIe Gen3, DDR3, etc, providing customers with high-performance programmable solutions.
Applications
Communication
image and video processing
data analysis
network information security
instrumentation
Key Features
- • Pluggable module with 4 x Panasonic board-to-board connectors
• 1 GByte (32-bit) DDR3 SDRAM
• 32 MB QSPI Flash
• 1 x PCIe® Gen2 ×4
• Gigabit transceivers
◆ 8 x HSSTLP, up to 6.6 Gbps - • User I/Os
◆ 190 FPGA I/Os• Work temperature range of -40°C to +85°C
• 5V single supply
• Dimensions: 60 x 60 mm form factor
Module Features

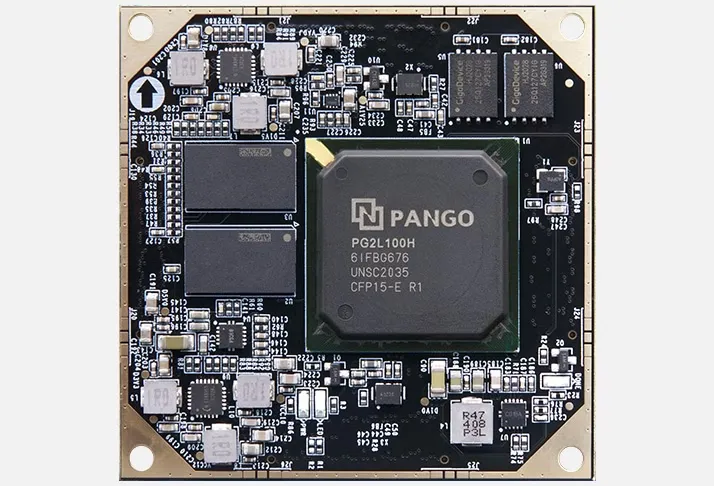

Featuring the PANGOMICRO Logos-2 PG2L100H -6IFBG676
* If you want to design a base board based on this Logos-2 system-on-module, you need to purchase AXK680337YG high-speed Board to Board Connectors, 80 Pins.
* We have Logos-2 development boards that uses this Logos-2 module, to get started with development straight out of the box.
Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box
ALINX PANGOMICRO Logos-2 PG2L100H system-on-module/SOM
| Logos-2 SOM | 1 |
|---|
Product Matrix
| Product Model | Preferred Model | Logos-2 | DDR3 SDRAM | QSPI Flash | Temp. Range | USD Price |
|---|---|---|---|---|---|---|
| P100 | √ | PG2L100H -6IFBG676 | 1 GB | 32MB | -40°C~+85°C | 172 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
