Description and Technical Data:
The P100 System-on-Module (SoM) combines high-performance Pango Logos2-series PG2L100H-6IFBG676 device with fast DDR3 SDRAM, dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.
Product Description
The P100 System-on-Module (SoM) combines high-performance Pango Logos2-series PG2L100H device with fast DDR3 SDRAM, dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.
Applications
● communication
● Image and video processing
● Data analysis
● medical care
● Industrial control
● Network Information Security
Key Features
- ● PANGO Logos-2 PG2L100H:◆ 28 nm FPGA fabric
● Pluggable module with 4 x board-to-board connectors
● 1 GByte (32-bit) DDR3 SDRAM
● 32 MB QSPI Flash
● Gigabit transceivers◆ 8 x HSSTLP, up to 6.6 Gbps - ● user I/Os◆ 190 FPGA I/Os ● Work temperature range of -40°C to 85°C
● 5V single supply
● Dimensions: 60 x 60mm form factor
Module Features
Featuring the Pango Logos2 PG2L100H-6IFBG676
* If you want to design a base board based on this Logos System-on-Module, you need to purchase AXK680337YG high-speed Board to Board Connectors, 80 Pins.
* We have Logos development boards AXP100B that uses this Logos module, to get started with development straight out of the box.
Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box

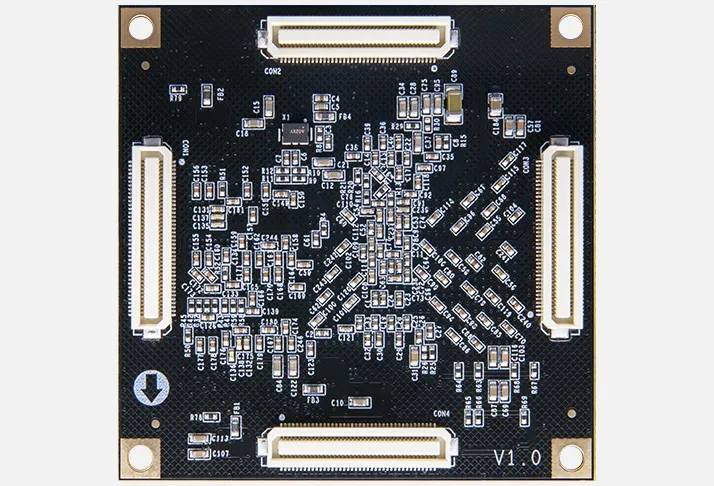

ALINX Pango Logos PG2L100H System-on-Module/SoM
| System-on-Module | 1 |
|---|
Product Matrix
| Product Model | Preferred Model | FPGA Devices | DDR3 | QSPI Flash | Temp. Range | USD Price | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P100 | √ | PG2L100H-6IFBG676 | 1GB | 32MB | -40°C~ 85°C | 165 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
