Description and Technical Data:
The P25G System-on-Module (SoM) combines high-performance Pango Logos-series PGL25G-6IMBG324 device with fast DDR3 SDRAM, dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.
Product Description
The P25G System-on-Module (SoM) combines high-performance Pango Logos-series PGL25G-6IMBG324 device with fast DDR3 SDRAM, dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.
Applications
● communication
● Image and video processing
● medical care
● Industrial control
Key Features
- ● PANGO Logos PGL25G:◆ 40 nm FPGA fabric
● 512 MByte (16-bit) DDR3 SDRAM
● 16 MB QSPI Flash
● USB TO UART
● LED (1 x LED) + KEY(1 x RESET)
● User I/Os
◆ 136 FPGA I/Os (3.3V) - ● Work temperature range of -40°C to 85°C
● 5V single supply
● Dimensions: 75 x 64 mm form factor
Development Board Features
Featuring the Pango Logos PGL25G-6IMBG324
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any Pango Logos based application.
Please check the Related Products at the bottom of the page and click to learn more details.
What's Inside the Box

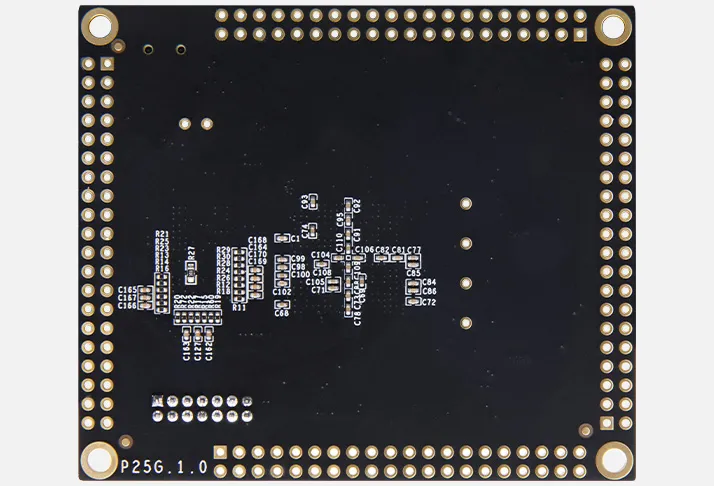

ALINX Pango Logos PGL25G System-on-Module/SoM
| SoM | 1 |
|---|
Product Matrix
| Product Model | Preferred Model | FPGA Devices | DDR3 | QSPI Flash | Temp. Range | USD Price | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P25G | √ | PGL25G-6IMBG324 | 256MB | 16MB | -40°C-85°C | 72 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
