Description and Technical Data:
1) Overview/Key Features

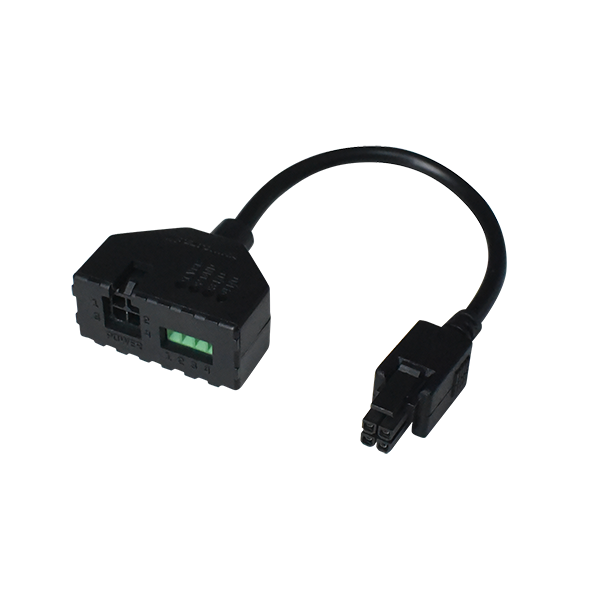

The Teltonika PR5MEC21 is a 4-pin power adapter with a 4-way screw terminal block for accessing device power and input/output connections. It includes a 100 mm cable and a micro slotted screwdriver.
Minimum orders apply. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Input connector | 4-pin, 3 mm pitch and 4-way screw terminal block |
| Output connector | 4-pin, 3 mm pitch |
| Cable | 4 × 0.20 mm² (24 AWG), 100 mm |
| Screwdriver type | Micro slotted |
| Weight | 15 g |
| Conductor cross section, solid / flexible | 0.14–0.50 mm² (20–26 AWG) |
| Conductor cross section, flexible with ferrule and plastic sleeve | 0.25–0.30 mm² (22–23 AWG) |
| Pin 1 | Power + |
| Pin 2 | Ground – |
| Pin 3 | Input/Output |
| Pin 4 | Input/Output |
3) Tech Support/Dokuments
Web available technical information usually covers the adapter’s connectors, cable and conductor specifications, pinout, weight, and screwdriver type. Fee-based technical support is available from Mirifica Industrial.
4) Related Product Suggestion
Compatible products: Oxa, RUT200, RUT202, RUT241, RUT260, RUT261, RUT271, RUT301, RUT361, RUT901, RUT906, RUT951, RUT951 PoE+, RUT956, RUT976, RUTC16, RUTC40, RUTC41, RUTC42, RUTC50, RUTC54, RUTM08, RUTM09, RUTM10, RUTM11, RUTM16, RUTM30, RUTM50, RUTM50 Japan, RUTM51, RUTM52, RUTM54, RUTM56, RUTM59, RUTX08, RUTX09, RUTX10, RUTX11, RUTX12, RUTX14, RUTX50, RUTXR1, TRB140, TRB141, TRB142, TRB143, TRB145, TRB160, TRB501, TRM282, TRM500, TSW100, and TSW110. Compatible accessory: BAT120 – Uninterruptible Power Supply.
5) Downloads/Links
6) What is in the package
- 1 x product
