Description and Technical Data:
1) Overview/Key Features

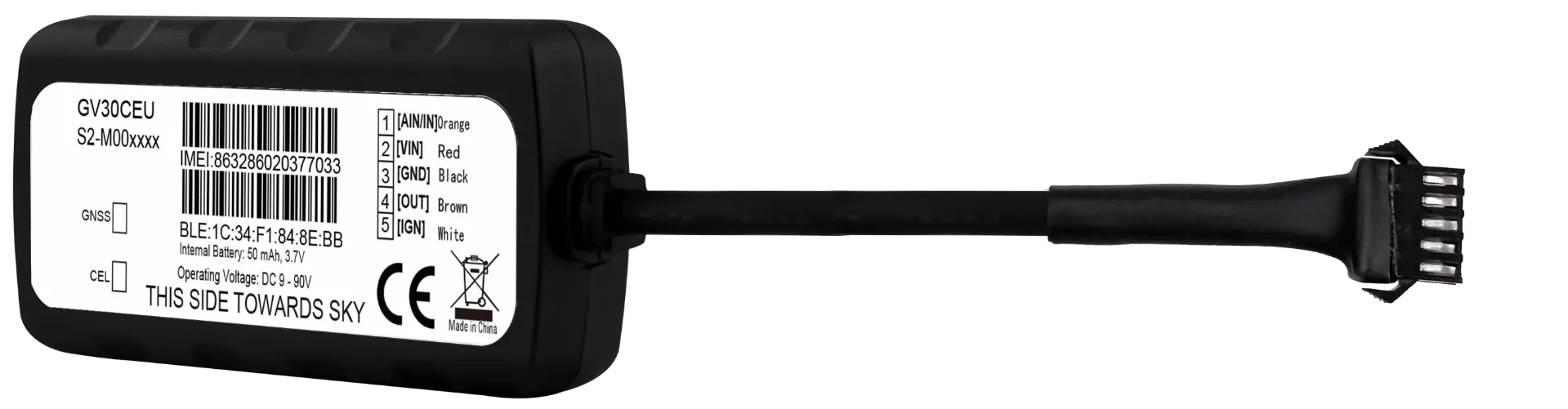

The Queclink GV30CEU is a compact LTE Cat 1 vehicle tracker with 2G fallback, designed for discreet installation and vehicle monitoring. It combines GNSS positioning with internal cellular and GNSS antennas, BLE 5.4 connectivity, and a wide 9–90 V operating-voltage range. Features include scheduled reporting, ignition detection, driver behavior monitoring, crash detection, tow alarms, and jamming detection. Typical applications include fleet management, automobile finance, vehicle leasing, and stolen-vehicle recovery.
Minimum orders may apply. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Cellular technology | LTE Cat 1 with 2G fallback |
| LTE bands | FDD: B1 / B3 / B7 / B8 / B20 / B28 |
| 2G frequencies | EGPRS: 900 / 1800 MHz |
| GNSS constellations | GPS, BeiDou, Galileo, GLONASS |
| GNSS position accuracy | Autonomous: < 2.0 m CEP |
| Bluetooth | BLE 5.4; 2.4 GHz |
| Operating voltage | 9–90 V |
| Backup battery | Li-Polymer, 200 mAh |
| Digital input | 1 positive-trigger input for ignition detection |
| Configurable input | 1 input configurable for analog input (0–16 V) or negative input |
| Digital output | 1 latched open-drain output; maximum 150 mA drive current |
| Dimensions | 76 × 39 × 16 mm |
| Weight | 41.5 g |
| Operating temperature | −30°C to +70°C |
| Storage temperature | −40°C to +80°C |
| Buffer capacity | Up to 10,000 messages |
| Configuration interface | Micro USB for configuration, upgrade, and debugging |
3) Tech Support/Dokuments
Web available technical information usually covers product features, specifications, applications, and downloadable product documentation. Fee-based technical support is available from Mirifica Industrial.
4) Related Product Suggestion
No specific add-on products for the GV30CEU were identified in the manufacturer’s product-page information available for this description.
5) Downloads/Links
6) What is in the package
- 1 x product
