Description and Technical Data:
Overview/Key Features

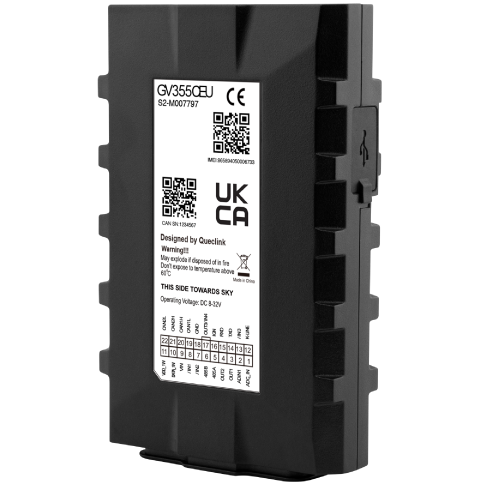

The GV355CEU is an LTE vehicle tracker for advanced fleet applications. It supports remote tachograph data and DDD-file downloads, tachograph live data, J1708, and CANBus-equipped vehicles, including light vehicles with DTC reading. Built-in BLE 5.2 and multiple interfaces enable connection to accessories for temperature monitoring, driver identification, and event alerts. GNSS supports positioning, and the tracker includes geofencing, tow alarms, driving-behavior monitoring, and crash-data collection.
Minimum orders may apply. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
Tech Specs
| Specification | Detail |
|---|---|
| Cellular connectivity | LTE Cat 1 with 2G fallback |
| LTE bands | FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 |
| LTE data rate | Maximum 10 Mbps downlink / 5 Mbps uplink |
| GSM frequencies | 850/900/1800/1900 MHz |
| GNSS | GPS, BeiDou, GLONASS, Galileo |
| GNSS position accuracy | Autonomous CEP: < 2.0 m |
| Bluetooth | BLE 5.2 |
| Motion sensor | 6-axis G-sensor |
| Interfaces | 1-Wire, 1 × RS232, 1 × RS485, K-Line, Mini USB |
| Analog inputs | 1 × 0–16 V; 1 × 0–30 V |
| Digital inputs | 1 × positive trigger input for ignition detection; 3 × negative trigger inputs |
| Digital outputs | 1 × digital output; 1 × latched open-drain output, 150 mA maximum drive current |
| Configurable I/O | 1 × configurable digital input/output |
| SIM | Micro SIM card slot or eSIM |
| Backup battery | Li-polymer, 250 mAh |
| Operating voltage | 8–32 V DC |
| Operating temperature | -30 °C to +70 °C |
| Storage temperature | -40 °C to +80 °C |
| Buffer capacity | Up to 10,000 messages |
| Geofencing | Up to 20 internal geofence regions |
| Communication protocols | TCP, UDP, SMS |
| Dimensions | 94 × 58.5 × 21 mm |
| Weight | 92 g |
| Region and certifications | Global; CE, E-Mark, UKCA |
Tech Support/Dokuments
Web available technical information usually covers installation and configuration, cellular and GNSS connectivity, vehicle and tachograph data, interface connections, alarms, and fleet applications. Fee-based technical support is available from Mirifica Industrial.
Related Product Suggestion
- DR200 RFID Card Reader Kit
- iButton Kit — iButton and Reader
- RS232 Camera with Power Supply
- EIO I/O Expander
- DR102 RFID Card Reader Kit
Downloads/Links
- [EN] GV355CEU Datasheet — Queclink GV355CEU product page
What is in the package
- 1 x product
