Description and Technical Data:
1) Overview/Key Features

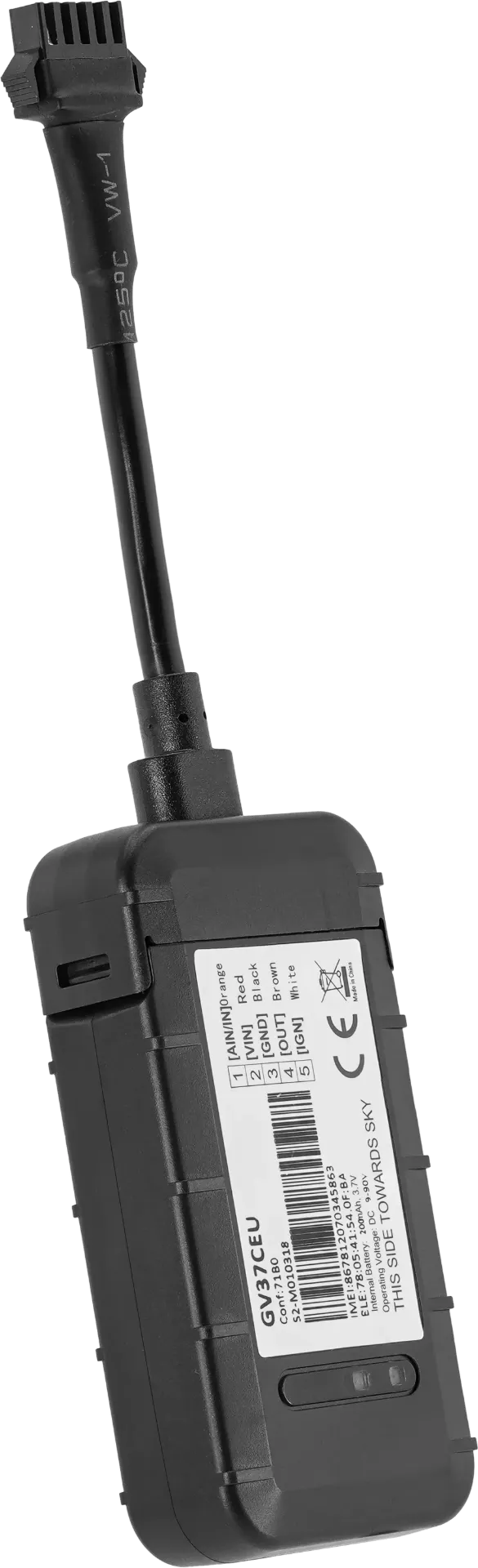

The Queclink GV37CEU is a compact, waterproof GNSS vehicle tracker with LTE Cat 1 bis connectivity and BLE 5.4. It supports scheduled position reporting, geofence alerts, towing and motion detection, driving behavior monitoring, and jamming and crash detection. Its IP67-rated enclosure and 9–90 V operating range suit vehicle and fleet-tracking applications. The tracker can also act as a BLE gateway for accessories such as beacons, temperature sensors, and door sensors.
Minimum orders may apply. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Cellular technology | LTE Cat 1 bis; EGPRS fallback |
| LTE bands | FDD B1, B3, B7, B8, B20, B28 |
| GNSS constellations | GPS, BeiDou, Galileo, GLONASS |
| GNSS position accuracy | Autonomous: <2.0 m |
| Bluetooth | BLE 5.4; 2.4 GHz |
| Operating voltage | 9–90 V |
| Backup battery | Li-Polymer, 200 mAh |
| Operating temperature | −30°C to +70°C |
| Storage temperature | −40°C to +80°C |
| Dimensions | 81 × 42 × 19 mm |
| Ingress protection | IP67 |
| Digital input | 1 positive-trigger input for ignition detection |
| Configurable input | 1 input configurable for analog input (0–16 V) or negative input |
| Digital output | 1 latched open-drain output; maximum 150 mA |
| Interfaces | Micro USB for configuration, upgrade, and debugging |
| Transmit protocols | TCP, UDP, SMS |
| Message buffer | Up to 10,000 messages |
| Geofences | Up to 20 regions |
| Applications | Fleet management, vehicle tracking, and monitoring of driving events |
3) Tech Support/Dokuments
Web available technical information usually covers the GV37CEU’s cellular and GNSS connectivity, BLE gateway capability, inputs and output, operating conditions, reporting, and alarm functions. The tracker supports GPS, BeiDou, Galileo, and GLONASS, with scheduled reporting and up to 20 geofence regions. Fee-based technical support is available from Mirifica Industrial.
4) Related Product Suggestion
The GV37CEU can connect with BLE beacons, temperature sensors, and door sensors. Confirm accessory compatibility for the intended configuration before ordering.
5) Downloads/Links
No functioning downloads or datasheet links were available in the product information reviewed.
6) What is in the package
- 1 x product
