Description and Technical Data:
1) Overview/Key Features

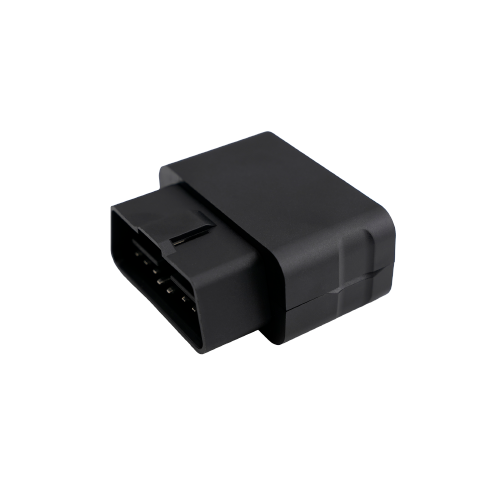

The GV500CG is a compact LTE Cat 1 OBD tracker with 2G fallback, designed for insurance telematics, car leasing, and connected-car services. It supports BLE 5.2 and provides driver-behavior monitoring, crash detection, mileage recording, geofencing, and virtual ignition detection. The OBD port supplies power; configuration and firmware upgrades are available through Micro USB.
- LTE Cat 1 with 2G fallback
- Compact plug-in OBD design
- BLE 5.2
- GNSS tracking with internal antennas
- Driving-behavior and crash detection
- Mileage recording and MQTT reporting
- TLS 1.2 data encryption
Minimum orders may apply. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Dimensions | 50 × 46 × 23 mm |
| Weight | 41 g |
| Operating voltage | 8–32 V DC |
| Operating temperature | −20 °C to +60 °C |
| Storage temperature | −40 °C to +80 °C |
| Battery | Li-Polymer, 3.7 V, 60 mAh |
| Certifications | CE, E-Mark, UKCA |
| Buffer messages | Up to 10,000 |
| BLE | BLE 5.2 |
| Motion sensor | 3-axis G-sensor |
| GNSS type | All-in-One GNSS receiver |
| GNSS position accuracy | Autonomous: <2.0 m CEP |
| LTE bands | LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 |
| LTE data transmission | Maximum 10 Mbps downlink / 5 Mbps uplink |
| GSM frequencies | 850/900/1800/1900 MHz |
| GSM data transmission | EDGE: 236.8 Kbps downlink/uplink; GPRS: 85.6 Kbps downlink/uplink |
| Transmission protocols | TCP, UDP, SMS |
| OBD port | Power supply only |
| USB interface | Micro USB for configuration and firmware upgrade |
| Antennas | Internal cellular and GNSS antennas |
| LED indicators | CEL, GNSS, PWR |
| Reporting and alarms | Scheduled reporting; geofence and parking alarms; low-power, power-on, and tow alarms |
| Additional features | Driver-behavior monitoring, crash detection, virtual ignition detection, jamming detection, MQTT reporting, TLS 1.2 |
3) Tech Support/Dokuments
Web available technical information usually covers product features, specifications, LTE and GNSS connectivity, OBD power connection, configuration, and insurance telematics applications. Fee-based technical support is available from Mirifica Industrial.
4) Related Product Suggestion
No add-on products are listed on the product page.
5) Downloads/Links
6) What is in the package
- 1 x product
