Description and Technical Data:
1) Overview/Key Features

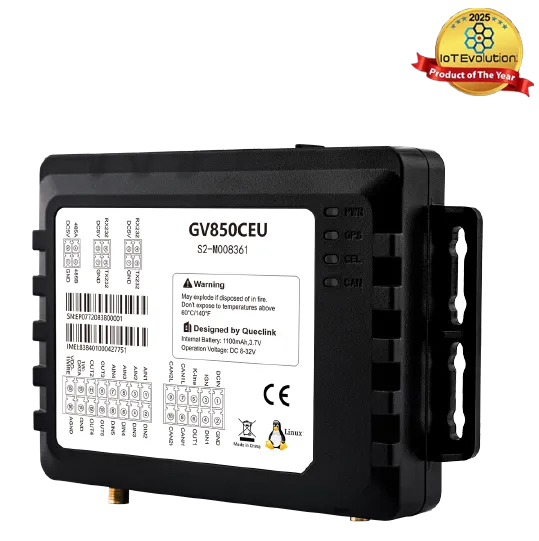

The GV850CEU is a programmable, Linux-based telematics gateway for commercial and industrial vehicles. It supports LTE Cat 1 with 2G fallback, vehicle positioning, CANBus data reading, and remote tachograph data access. Its interfaces enable connection to vehicle systems and external equipment, making it suitable for fleet management, cold-chain logistics, and vehicle data applications.
Minimum orders may apply. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Cellular connectivity | LTE Cat 1 with 2G fallback |
| Operating voltage | 8–32 V DC |
| Backup battery | 1,100 mAh, 3.7 V rechargeable Li-polymer |
| Operating temperature | −20 °C to +60 °C |
| Storage temperature | −40 °C to +85 °C |
| Dimensions | 123 × 80 × 21 mm |
| Weight | 137.2 g |
| Operating system | OpenSTLinux, kernel 5.15 or higher |
| Memory | 128 MB DDR2 RAM; 128 MB flash |
| Motion sensor | 3-axis G-sensor |
| SIM | One SIM card slot or eSIM |
| CAN interfaces | CAN1 supports J1939/FMS; CAN2 supports J1708/OBD CAN, including DTC, and DDD file download |
| Serial interfaces | Two RS232 ports and one RS485 port |
| Other interfaces | USB Type-C, K line, 1-Wire data and VDD, three 5 V power outputs |
| Antennas | Internal cellular and GNSS antennas; optional external antennas |
| Applications | Fleet management, cold-chain logistics, vehicle monitoring and tachograph data access |
3) Tech Support/Dokuments
Web available technical information usually covers cellular connectivity, CANBus and tachograph data access, vehicle interfaces, operating conditions, and applications. Fee-based technical support is available from Mirifica Industrial.
4) Related Product Suggestion
No specific add-on products are identified in the available Queclink product-page information.
5) Downloads/Links
- No downloadable files are listed in the available Queclink product-page information.
6) What is in the package
- 1 x product
