Description and Technical Data:
1) Overview/Key Features

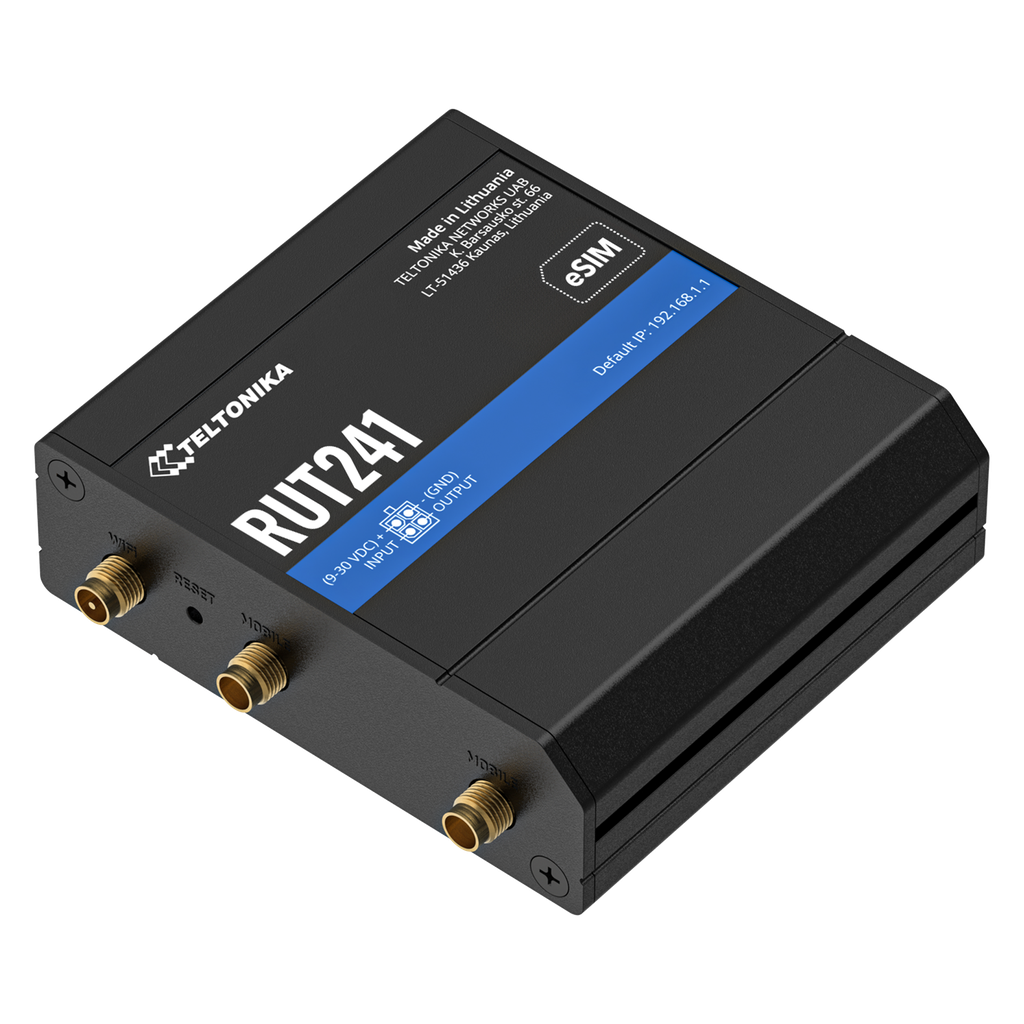

The RUT241 is a compact industrial 4G LTE router designed for reliable IoT, M2M, remote-access, and backup-connectivity applications. It combines 4G LTE Cat 4 connectivity with Wi-Fi, 2 Ethernet ports, automatic WAN failover, digital input/output functionality, and the RutOS operating system. Selected alternative versions include eSIM™ functionality based on the SGP.22 architecture, supporting management of up to 7 eSIM profiles alongside a physical SIM card. Please also request a quote if you require GLOBAL versions or for North America or other areas.
- 4G LTE Cat 4, 3G, and 2G cellular connectivity
- Optional eSIM functionality with SGP.22 support
- Up to 7 eSIM profiles on eSIM-enabled versions
- 1 x Mini SIM slot
- 2 x Ethernet ports
- Wi-Fi 4 with wireless access-point and hotspot functionality
- Automatic WAN failover and connection backup
- RutOS operating system based on OpenWrt
- RMS compatibility for remote monitoring and management
- Digital input and digital output for solution automation
- 9 VDC to 30 VDC power input
- 24 V passive PoE support
- Compact industrial housing
- Operating temperature range from -40°C to +75°C
- DIN rail mounting option with a compatible accessory
The RUT241 is suitable for industrial monitoring, security and surveillance, remote equipment management, smart-grid installations, transportation, agriculture, and cellular backup connectivity.
Minimum orders may apply. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2) Tech Specs
| Specification | Detail |
|---|---|
| Mobile technology | 4G LTE Cat 4, 3G, and 2G |
| eSIM | Available on selected versions; SGP.22 architecture with support for up to 7 eSIM profiles |
| Physical SIM | 1 x Mini SIM slot |
| Ethernet | 2 x RJ-45 Ethernet ports |
| Ethernet speed | 10/100 Mbps |
| Wi-Fi standard | 802.11b/g/n, 2.4 GHz |
| Wi-Fi mode | Wireless access point and hotspot functionality |
| WAN failover | Automatic switching between cellular and wired WAN connections |
| Digital I/O | 1 x configurable digital input and 1 x configurable digital output |
| Power input | 9 VDC to 30 VDC |
| Passive PoE | 24 V passive PoE support |
| Power consumption | Less than 6.5 W |
| CPU | Single-core processor, 400 MHz |
| RAM | 128 MB DDR2 |
| Storage | 16 MB serial NOR Flash |
| Mobile antenna connectors | 2 x SMA |
| Wi-Fi antenna connector | 1 x RP-SMA |
| Housing | Aluminum housing and panels |
| Dimensions | 83 mm × 25 mm × 74 mm |
| Operating temperature | -40°C to +75°C |
| Operating humidity | 10% to 90%, non-condensing |
| Ingress protection | IP30 |
| Operating system | RutOS, based on OpenWrt |
| Remote management | RMS-compatible remote monitoring, configuration, and eSIM profile management |
3) Tech Support/Dokuments
Web available technical information usually covers first-start installation, SIM and eSIM configuration, cellular connectivity, Wi-Fi settings, Ethernet and WAN failover, digital input/output operation, RutOS configuration, RMS management, firmware updates, security, interfaces, certifications, troubleshooting, and configuration examples.
There are the following technical resources:
- Quick Start Guide
- Firmware Downloads
- Package Downloads
- Manual
- Configuration Examples
- Interfaces documentation
- Certification & Approvals documentation
- Security documentation
- Nomenclature and classification-code information
- Product Change Notifications
- Marketing Material
- Software Development Kit documentation
- OSS information
- FAQ
Fee-based technical support is available from Mirifica Industrial.
4) Related Product Suggestion
- Higher-gain LTE antennas
- Higher-gain Wi-Fi antennas
- DIN rail mounting kit
- Wall-mounting accessories
- RMS remote management service
5) Downloads/Links
- RUT241
- Quick Start Guide (First Start)
- Firmware Downloads
- Package Downloads
- Manual
- Configuration Examples
- Interfaces
- Certification & Approvals
- Security
- Nomenclature, Classification codes
- Product Change Notifications
- Marketing Material
- Software Development Kit (SDK)
- OSS
- FAQ
6) What is in the package
The package contains.
- 1 x RUT241 router
- 1 x power adapter
- 1 x mobile antenna
- 1 x Wi-Fi antenna
- 1 x Quick Start Guide
