Description and Technical Data:
1) Overview / KeyFeatures

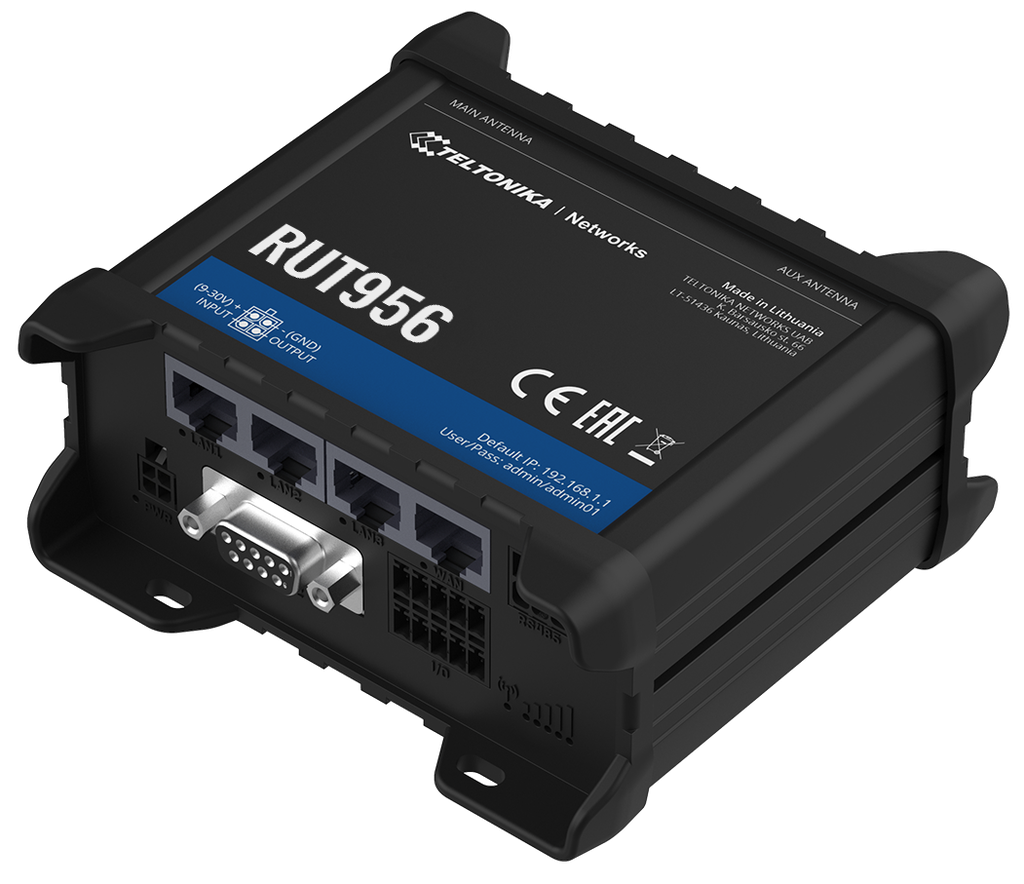

The Teltonika RUT956 is an industrial 4G LTE router designed to provide reliable internet connectivity and remote access for industrial, commercial, transport, energy, automation, and IoT applications. It combines cellular connectivity, Wi-Fi, Ethernet, serial communication, GNSS positioning, and digital input/output interfaces in a compact DIN-rail- or wall-mountable enclosure.
Key features include 4G LTE Cat 4 connectivity with 3G and 2G fallback, dual-SIM support with automatic failover, four-port Ethernet switching, 802.11 b/g/n Wi-Fi, GPS/GNSS, RS232 and RS485 serial interfaces, USB 2.0, configurable digital input/output, and compatibility with Teltonika Networks’ RutOS operating system. RutOS provides firewalling, VPN, network monitoring, automatic WAN failover, remote management, and industrial communication functions. teltonika-networks.com1
The RUT956 is suitable for applications such as remote equipment access, digital signage, CCTV connectivity, industrial automation, fleet and transport systems, backup internet access, and remote monitoring.
Minimum orders apply. B2B customers please contact Mirifica Industrial for volume quotes. Mirifica Industrial ships world-wide.
2)Tech Specs
| Specification | Detail |
|---|---|
| Device type | Industrial 4G LTE router |
| Cellular technology | 4G LTE Cat 4, 3G, and 2G |
| Maximum cellular speed | Up to 150 Mbps download and 50 Mbps upload |
| SIM support | Dual SIM with automatic failover |
| SIM format | Mini-SIM |
| Wi-Fi standard | IEEE 802.11b/g/n |
| Wi-Fi frequency | 2.4 GHz |
| Wi-Fi security | WPA/WPA2-Enterprise, WPA/WPA2-PSK, and related RutOS security options |
| Ethernet ports | 4 × 10/100 Mbps Ethernet ports |
| Ethernet functions | WAN, LAN, and switch configuration options |
| Serial interfaces | RS232 and RS485 |
| USB | 1 × USB 2.0 Type-A |
| Digital inputs | 1 configurable input |
| Digital outputs | 1 configurable output |
| GNSS | GPS, GLONASS, Galileo, and BeiDou support |
| Antennas | External LTE, Wi-Fi, and GNSS antennas |
| Operating system | RutOS |
| Remote management | RMS-compatible; remote configuration and monitoring |
| VPN support | Multiple VPN protocols, including OpenVPN, IPsec, WireGuard, and GRE |
| Firewall | Stateful firewall with configurable traffic rules |
| Power supply | 9–30 V DC |
| Power connector | 4-pin industrial power socket |
| Operating temperature | −40 °C to +75 °C |
| Housing | Plastic enclosure suitable for industrial installation |
| Mounting | DIN rail and wall mounting |
| Dimensions | Approximately 110 × 50 × 100 mm |
| Weight | Approximately 287 g |
Actual cellular bands and regional radio approvals depend on the ordered RUT956 variant.
3) TechSupport / Dokuments
Web available technical information usually covers initial setup, SIM installation, antenna connection, network configuration, Wi-Fi configuration, Ethernet and WAN settings, dual-SIM failover, GNSS operation, RS232 and RS485 configuration, input/output control, USB functions, VPN setup, firewall rules, firmware updates, RutOS administration, RMS remote management, troubleshooting, safety, and regulatory information.
Fee-based technical support is available from Mirifica Industrial.
4) Related Product Suggestion
RUT956 is compatible with Teltonika's RMS remote-management platform and with network antennas and other networking accessories. For installations requiring additional wireless coverage or improved cellular reception, compatible external LTE, Wi-Fi, and GNSS antenna options exist.
5) Downloads / Links
6) What is in the package
The package contains.
- 1 x Teltonika RUT956 router
- 1 x power adapter
- 2 x LTE antennas
- 1 x Wi-Fi antenna
- 1 x GNSS antenna
- 1 x Ethernet cable
- 1 x SIM adapter kit
- 1 x quick-start guide
